Item Details

Item Description

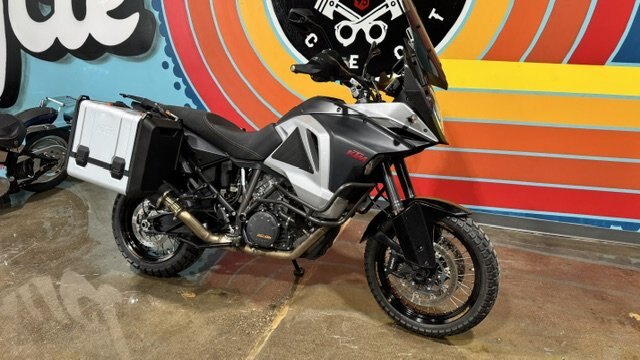

2016 KTM 1290 Super Adventure R

The 2016 KTM 1290 Super Adventure R is a high-performance adventure touring motorcycle designed for riders seeking a versatile machine capable of tackling both on-road and off-road terrains with ease. Powered by a 1,301cc V-twin engine, this model offers impressive power and torque, making it a formidable contender in the adventure touring segment.

Engine & Performance

• Type: Liquid-cooled, DOHC, 75° V-twin

• Displacement: 1,301 cc

• Bore x Stroke: 108.0 x 71.0 mm

• Compression Ratio: 13.1:1

• Power Output: 160 hp (118 kW) at 8,750 rpm

• Torque: 140 Nm at 6,750 rpm

• Fuel System: Keihin EFI with ride-by-wire throttle

• Clutch: PASC™ (TM) slipper clutch, hydraulically actuated

• Transmission: 6-speed, chain

• Cooling: Liquid-cooled

• Lubrication: Forced oil lubrication with 3 oil pumps

• EMS: Keihin EMS with RBW and cruise control, double ignition ​Total Motorcycle+2Cycle News+2Bennetts BikeSocial Membership+2Total Motorcycle+2El País+2Bennetts BikeSocial Membership+2Total Motorcycle

Chassis & Suspension

• Frame: Chromium-Molybdenum steel trellis frame, powder-coated

• Front Suspension: WP Semi-active suspension USD Ø 48 mm, fully adjustable, 220 mm travel

• Rear Suspension: WP direct link, twin-damper, fully adjustable, 220 mm travel

• Front Brakes: 2 x 320 mm discs, Brembo 4-piston radial calipers

• Rear Brakes: 267 mm disc, Brembo 2-piston caliper

• ABS: Bosch 9ME combined ABS (incl. cornering ABS and off-road mode, disengageable)

• Steering Head Angle: 64°

• Wheelbase: 1,560 mm

• Ground Clearance: 220 mm

• Seat Height: 860 mm (lowest), adjustable up to 875 mm ​Cycle News+3Total Motorcycle+3Motorcycle Database+3DSF+5Bikez+5Motorcycle Database+5El País+4Bennetts BikeSocial Membership+4Cycle News+4Motorcycle Database

Dimensions & Capacities

• Dry Weight: 229 kg

• Kerb Weight: 240 kg

• Fuel Tank Capacity: 30 liters

• Tires: Front: 90/90-21, Rear: 150/70-18 ​El País+1Motorcycle Database+1El País+2Bennetts BikeSocial Membership+2Total Motorcycle+2

Rider Aids & Features

• Riding Modes: Sport, Street, Rain, Off-Road

• Traction Control: Lean-angle dependent traction control

• Cornering ABS: Integrated with lean angle sensor

• Cornering Headlights: LED cornering lights linked to lean angle sensor

• Cruise Control: Standard

• Tyre Pressure Monitoring System: Standard

• Quickshifter/Autoblipper: Optional

• Hill Hold Control: Optional

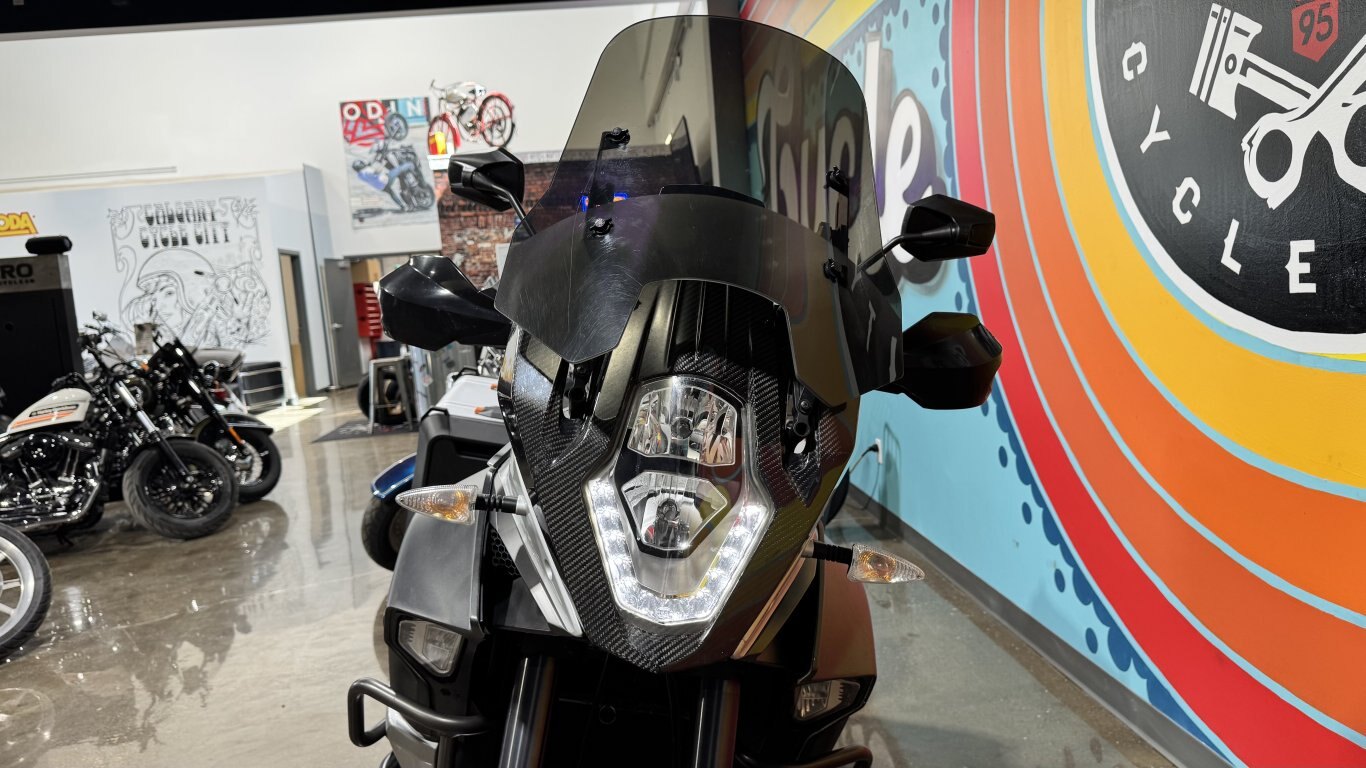

• Windshield: Easily adjustable with one hand

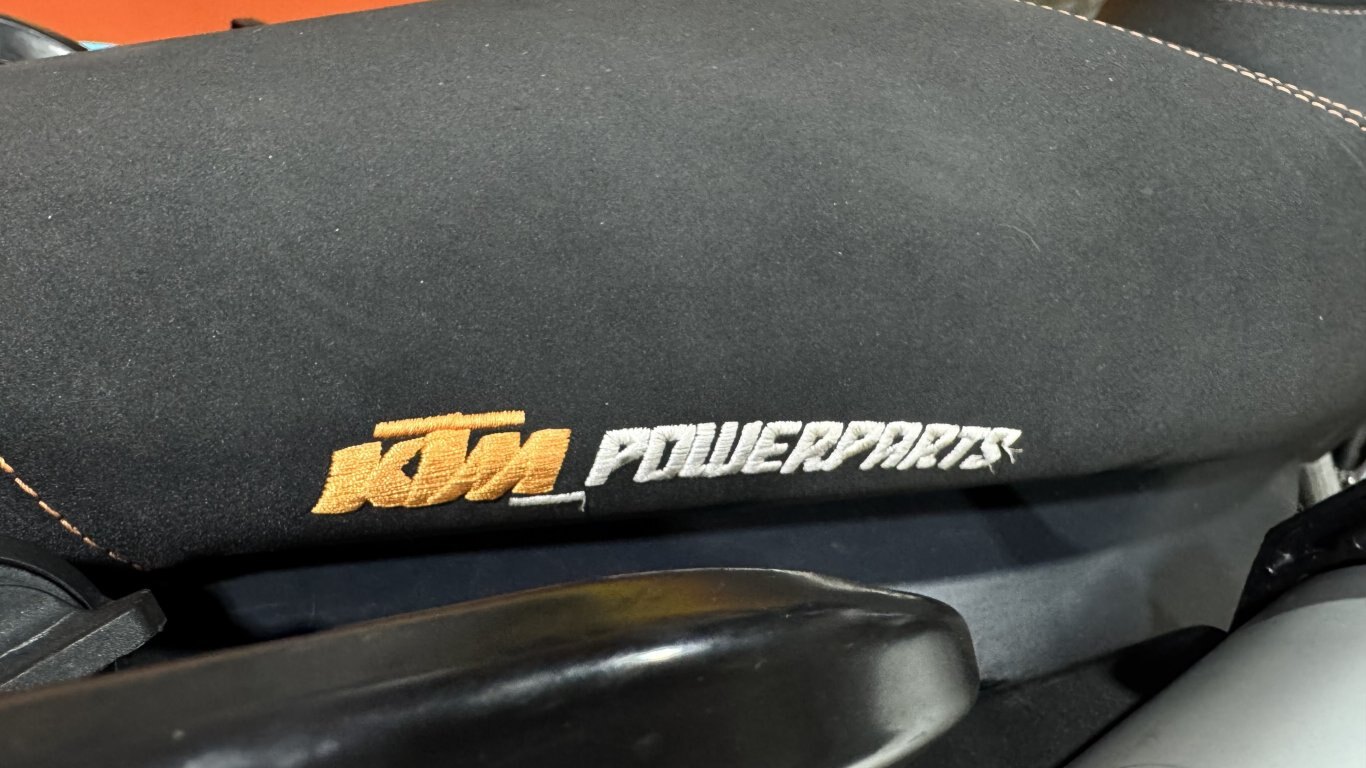

• Seat: 3D foam seat with heating elements

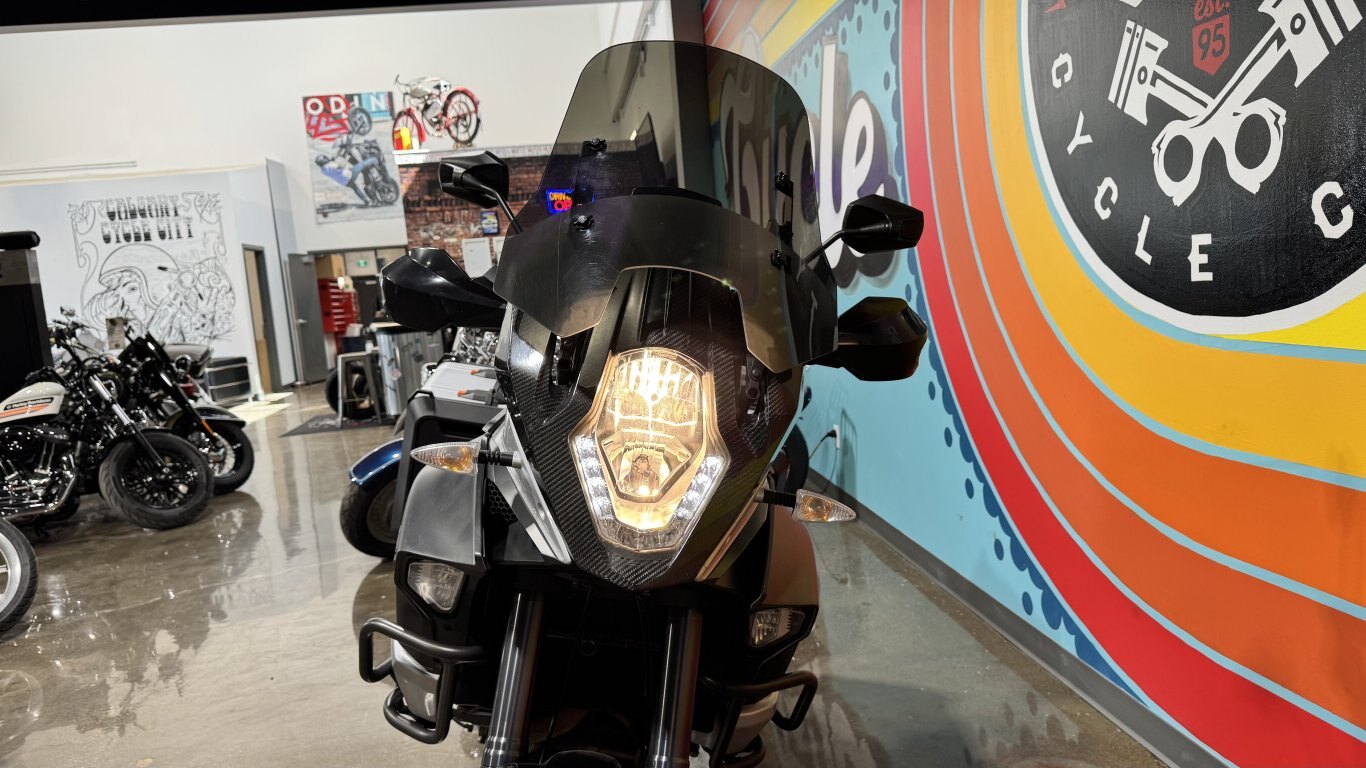

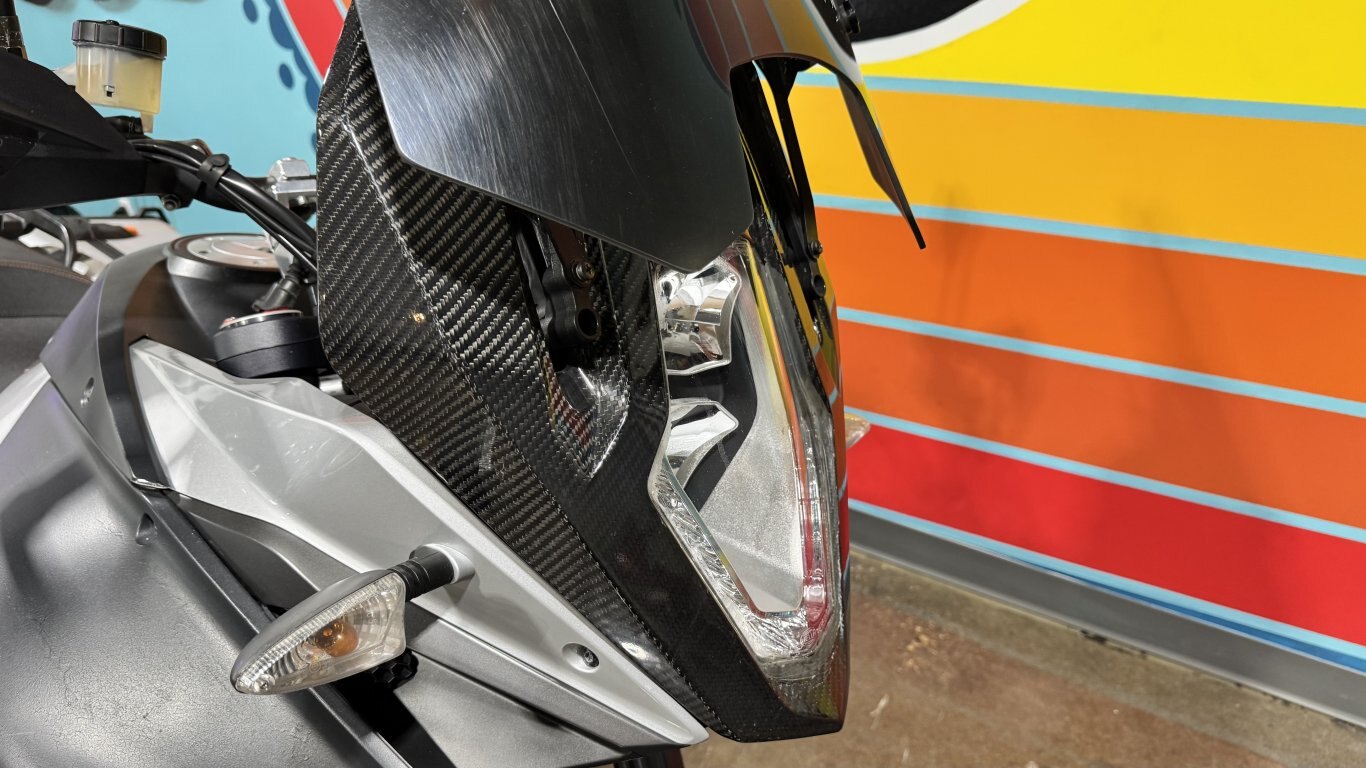

• Headlights: All LED, including cornering lights ​Bennetts BikeSocial Membership+3El País+3Total Motorcycle+3MotoPlanete+3Bennetts BikeSocial Membership+3DSF+3Bikez+6DSF+6Total Motorcycle+6Total Motorcycle

? Highlights & Features

• Advanced Suspension System: The WP semi-active suspension adapts continuously to road conditions, offering four damping modes (Comfort, Street, Sport, Offroad) to optimize ride quality and handling.

• Powerful Engine: The 1,301 cc V-twin engine delivers 160 hp and 140 Nm of torque, providing exceptional performance for both touring and off-road adventures.

• Comprehensive Rider Aids: Equipped with cornering ABS, traction control, cruise control, and optional quickshifter/autoblipper, enhancing safety and convenience.

• Long-Range Fuel Tank: The 30-liter fuel tank offers extended range, ideal for long-distance touring and remote area exploration.

• Comfort-Oriented Design: Features like heated grips, adjustable windshield, and a 3D foam seat ensure comfort during extended rides
