Features
|
Next-Gen Body Panels Arctic Cat’s Next-Gen body panels are designed to seamlessly cut through the air with as little atmospheric tension as possible. With only a quarter-turn of the two quick-release tabs, the side panel comes off and provides easy access to the engine compartment for general maintenance. |
8000 C-TEC2 Engine with DSI
The 8000 — efficient, responsive and fresh out of St. Cloud, Minnesota. This 2-stroke engine features noticeably faster throttle response and acceleration compared with our previous 8000, plus up to 30% reduction in oil consumption below 7000 rpm, 36% increase in low-end torque and 18% increase in midrange torque. Delivering a rare combination of increased power, reduced emissions and ultra-low oil consumption, the overall crispness sets new standards for performance and rideability in the 160-HP class. |
Arctic Mountain Drive System with TEAM Rapid Response II Drive and Rapid Reaction BOSS Driven Clutches The Arctic Mountain Drive System features TEAM® Rapid Response™ II drive and Rapid Reaction BOSS driven clutch combination for smooth shifting, optimal performance, maximum durability and reduced weight. The Rapid Response II drive clutch features an auto-adjusting belt tension design that delivers consistent performance without manual adjustments. It also features a 12.5% lower effective starting ratio while maintaining the top ratio for smoother engagement and reduced belt wear at drive-away speed. The Rapid Reaction BOSS driven clutch features the Built On Shaft Secondary design, eliminating the need for the steel clutch post in traditional designs, saving weight, reducing rotating mass, improving clutch balance and achieving tighter clutch/shaft mounting tolerance. |
Arctic Race Front Suspension with FOX 1.5 ZERO QS3 Shocks The Arctic Race front suspension’s geometry was developed through racing. Our unique wide A-arm spacing complements the chassis design, which allows us to maintain a tighter suspension. And the new FOX® QS3 shock lets you adjust your shocks to suit the riding conditions without removing your gloves. Set the clicker to 1 for a smooth, comfortable ride like the LXR. Click it up a notch to setting 2, and you’ll straighten out the corners like a Sno Pro®. Or click up to 3 to go head to head with an RR. These shocks feature a premium coil-over design with forged aluminum reservoir. |
SLIDE-ACTION Rear Suspension with Arctic Cat IFP Front and FOX ZERO QS3 Rear Shocks The SLIDE-ACTION Rear Suspension brings race-day technology to everyday riding. Our U-shaped slot fits over a fixed shaft to allow a crucial half-inch of sliding movement. As the rear transfer blocks are engaged, the free-acting front arm follows the terrain, keeping your skis firmly planted over bumps, and during aggressive cornering and acceleration. The Arctic Cat® IFP front gas shocks feature a hard-anodized aluminum body, 0.5″ shaft, aluminum internal floating piston, and high-quality seals and ice scrapers. FOX ZERO QS3 rear tracks feature 3-position dial compression adjustability for quick and easy tuning for different riding styles and conditions. They are rebound adjustable and feature Kashima coating for the smoothest, most supple action. |

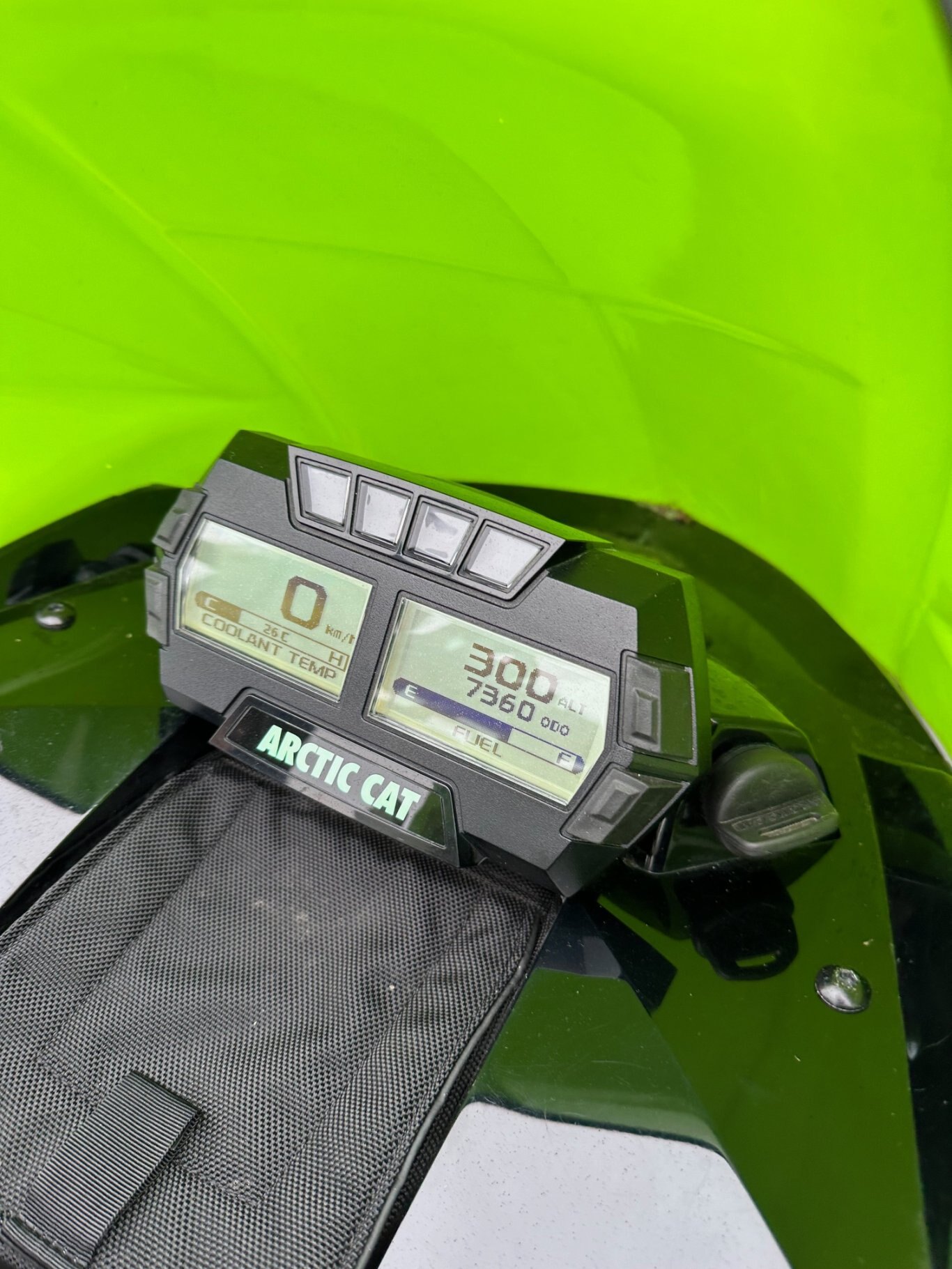

Deluxe Digital Gauge This dual configurable LCD screen gauge allows to you check all the vital information about your snowmobile and more. 14 different readings to be exact. There’s an odometer, speedometer, max RPM, 2 trip meters, engine hours, low oil light, coolant temperature, exhaust temperature, intake air temperature, battery voltage, fuel level, clock, reverse indicator, hand warmer and thumb warmer. |
Rear Rack Made of strong, lightweight aluminum, our rear rack gives you the room you need for that extra bag. |
Mountain Seat Now this is a mountain seat. Designed with maneuverability in mind, it allows you to easily slide from side to side as you make your way through tough terrain. |
137-in. Backcountry X Track with 1.75-in. Lugs The 15″ x 137″ x 1.75″ Backcountry X track was developed and proven in snocross competition and features a 3.0″ pitch and provides an excellent blend of traction in loose snow while delivering great flotation and trail-riding traction. |
ProCross - 6 Skis This trail ski’s 6″ width delivers excellent handling on hardpack snow and good flotation in loose snow. A stiff, deep keel provides positive cornering in all conditions |
11" Mid-Height Windshield The perfect mix of protection and comfort, keeping any spray from slowing you down when the going gets really fast. |
