Penta - VERTICAL SPREADERS 8610V
Contact for Price
Call 1-800-567-7569
Item Details
ID: 27679838
Make: Penta
Type: New
Make: Penta
Type: New
Year: 2023
Model: VERTICAL SPREADERS 8610V
Model: VERTICAL SPREADERS 8610V
Item Description

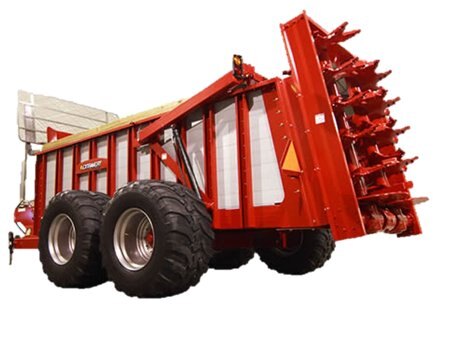

VERTICAL SPREADERS 8610VV Series brings together the proven Hagedorn hydraulic-push platform with the spreading performance of BERMA vertical beaters. The result is a rugged, reliable machine with controllable, measurable and repeatable performance. See it in action online. |
|
Specifications
|
| Recommended HP - 250 |
|---|
| Capacity | |
|---|---|
| Heaped Volume | 921 cu ft / 26.1 m3 |
| Struck Level (ASAE S324.1) | 594 cu ft / 16.8 m3 |
| Heaped Bushels (ASAE S237.1) | 740 |
| Carrying Capacity | 60,000 lbs / 26,800 kgs |
| Dimensions | |
|---|---|
| Inside Width | 79 in / 200.7 cm |
| Inside Depth | 60.1 in / 152.7 cm |
| Inside Length (ASAE S324.1) | 18 ft / 5.5 m |
| Overall Length | 32 ft / 9.8 m |
| Overall Width (with Tires) | |
| 750/45R26.5 Traction Implement Radial | 162.2 in / 412.0 cm |
| Beaters | |
|---|---|
| Beater Configuration | Vertical |
| Beater Diameter | 39 in / 99.1 cm |
| Beater Speed | 437 RPM |
| Axles | |
|---|---|
| Axle Type | Oscillating Tandem |
| Wheel Hub Type | 10 Bolt |
| Wheel Hub Capacity | 20,000 lbs / 9,072 kgs |
| Wheel Spindle Diameter | 5 in / 12.7 cm |
| Tandem Spindle Diamater | 6 in / 15.2 cm |
| General | |
|---|---|
| End Gate | Standard |
| Wood Rails | Standard |
| Beater Pan | Standard |
| Stone Guard | Standard |
| Hydraulics / PTO | |
|---|---|
| Sequencing Valve | Standard |
| Constant Velocity Joint | |
| Available PTO | 1000 RPM / 1 3/4-20 |
