Penta - HORIZONTAL SPREADERS 227H
Contact for Price
Call 1-800-567-7569
Item Details
ID: 27679833
Make: Penta
Type: New
Make: Penta
Type: New
Year: 2023
Model: HORIZONTAL SPREADERS 227H
Model: HORIZONTAL SPREADERS 227H
Item Description

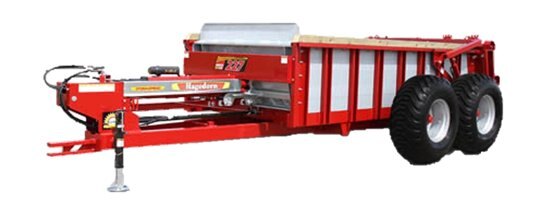

HORIZONTAL SPREADERSThe longest lasting, best performing, most servicable horizontal beater manure spreader your money can buy. Featuring Hydra-Spread's proven stepped beater configurations and RipGrip paddles for more consistent distribution than traditional beater configurations. |
|
Specifications
|
| Recommended HP - 80 |
|---|
| Capacity | |
|---|---|
| Heaped Volume | 458 cu ft / 12.97 m3 |
| Cubic Feet Struck Level (ASAE S324.1) | 236 cu ft / 6.68 m3 |
| Heaped Bushels (ASAE S237.1) | 368 |
| Carrying Capacity | 22,000 lbs / 9,950 kgs |
| Dimensions | |
|---|---|
| Inside Width | 71.5 in / 181.6 cm |
| Inside Depth | 34 in / 86.4 cm |
| Inside Length (ASAE S324.1) | 14 ft / 4.3 m |
| Overall Length | 24 ft / 7.3 m |
| Overall Width (with Tires) | |
| 425 x 22.5 Truck Type Tires | 124 in / 315.0 cm |
| 44/18.00 x 20 Traction Implement | 128 in / 325.1 cm |
| 550/60 x 22.5 Traction Implement | 136 in / 345.4 cm |
| Beaters | |
|---|---|
| Beater Configuration | Stepped |
| Lower Beater (Diameter / Speed) | 24 / 385 |
| Upper Beater (Diameter / Speed) | 16 / 360 |
| Axles | |
|---|---|
| Axle Type | Oscillating Tandem |
| Hub Type | 8 Bolt |
| Hub Capacity | 12,000 lbs / 5,443 kgs |
| Wheel Spindle Diameter | 3 in / 7.6 cm |
| Tandem Spindle Diameter | 4 in / 10.2 cm |
| Drop Axles (Optional) | 6 in / 15.2 cm Drop |
| General | |
|---|---|
| End Gate | Standard |
| Wood Rails | Standard |
| Beater Pan | Standard |
| Hydraulics / PTO | |
|---|---|
| Available Flow Control | Sequencing Type |
| Available Flow Control | Non-Sequencing |
| Available PTO | 540 RPM / 1 3/8-6 |
| Available PTO | 1000 RPM / 1 3/8-6 |
