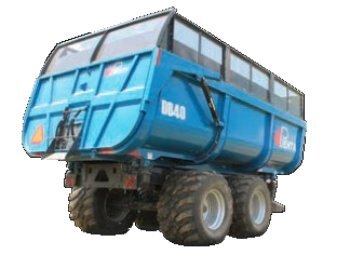

TANDEM AXLEPenta comes from a long history of farming, and we understand that transporting your crop is something that needs to be done quickly and reliably. That's why we are pleased to introduce our latest line of products to improve the efficiency of your operation - Penta hydraulic Dump Boxes. Penta dump boxes were designed with the farmer in mind. Start with the visibility inside the box from the cab of your tractor, move to the unique loading and unloading features, and finish with an overbuilt frame and robust axles for increased strengthen flotation. Combining simplicity with strength. Penta dump boxes are the premium choice for the modern farmer. With on the farm testing and farmer input. Penta is providing a superior option for quickly transporting and delivering your crops in perfect condition. |
Specifications
|
Specifications | |
---|---|
Total Length | 348" |
Total Height (with Tires & 32" Extentions) | 153" |
Outside Width (with Tires) | 131" |
Interior Dimensions (L x W x H) | 20.9' x 9.0' x 4.6' |
Unit Weight | 21,000 lbs |
Tandem Axle Weight Capacity | 40,000 lbs / 18,140 kg |
Volume (with Extensions) | 1400 cu ft / 40m3 |
Silage Capacity | 17.5 tons |
Hoist Oil Volume | 8.5 US Gal / 32 Litres |
Minimum Tractor H.P. | 160 |
Features | |
---|---|
Axles | Tandem |
Steering Axles | No Steer Axle |
Extension Height | 32" |
Front Tilt Extension | Hydraulic |
Tailgate | Hydraulic |
Grain Door | Manual/Optional Hydraulic |
Tires |
Standard - BKT FL630 800/45R26.5 Optional - Michelin 800/45R26.5 |
