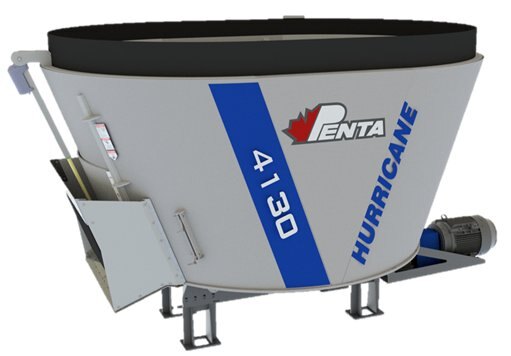

SINGLE AUGER STATIONARY 4130Penta Stationary Vertical Mixers are compact and convenient machines with a high capacity and low power consumption. Stationary Mixers offer the possibility to use more economical feed boxes with less horsepower to distribute the feed. The mixers run at a reduced constant RPM as opposed to mobile mixers, and full clean out can be arranged through a variable drive and gearbox. All mixers are built on a subframe and supports can be ordered to put the machine at the desired height. The machine is operated by a frequency changer which makes sure that the machine starts slowly and without any increase in power. The frequency changer also enables acceleration as required. Contact Penta for door location and HP requirements. |
Specifications
|
Specifications | Imperial | Metric |
---|---|---|
Capacity 9" Rubber | 425 cu ft | 12 m3 |

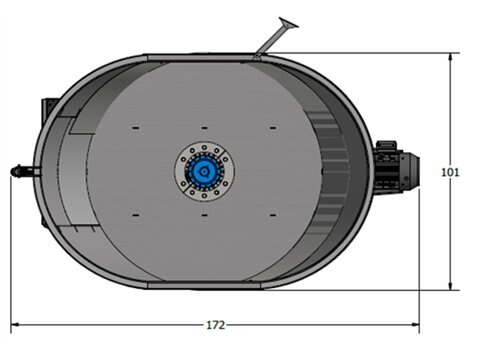

Total Width | 101 in | 256 cm |
Total Length | 172 in | 437 cm |

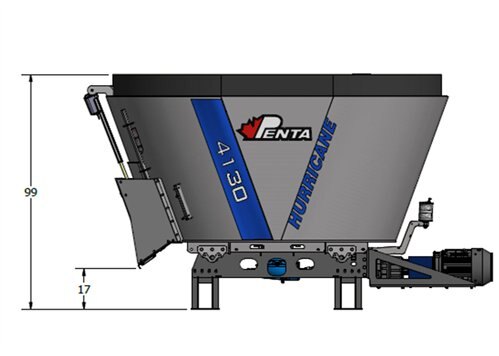

Total Height | 99 in | 251 cm |
Loading Height | 94 in | 238 cm |
Chute Height | 17 in | 42 cm |
Model Description | |
---|---|
Auger Thickness (Optional 3/4") | 1/2" |
Floor Thickness | 3/4" |
2-Speed Gearbox | Standard |
Max lbs of Feed in Mixer | 7,650 lbs |
Magnets | Optional |
Hydraulic Power Pack | Yes |
Drice Systems and Electrical Requirements | |
---|---|
Drive Style | Electrical Serive Required |
Direct, 40hp | 240V single phase, 200A |
480V three phase, 70A | |
600V three phase, 50A | |
Direct, 50hp | 240V single phase, 225A |
480V three phase, 80A | |
600V three phase, 60A |
