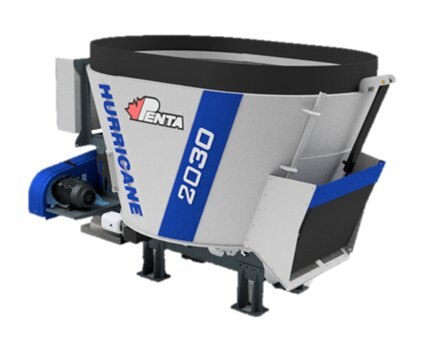

SINGLE AUGER STATIONARY 2030Penta Stationary Vertical Mixers are compact and convenient machines with a high capacity and low power consumption. Stationary Mixers offer the possibility to use more economical feed boxes with less horsepower to distribute the feed. The mixers run at a reduced constant RPM as opposed to mobile mixers, and full clean out can be arranged through a variable drive and gearbox. All mixers are built on a subframe and supports can be ordered to put the machine at the desired height. The machine is operated by a frequency changer which makes sure that the machine starts slowly and without any increase in power. The frequency changer also enables acceleration as required. Contact Penta for door location and HP requirements. |
Specifications
|
Specifications | Imperial | Metric |
---|---|---|
Capacity 9" Rubber | 244 cu ft | 7 m3 |

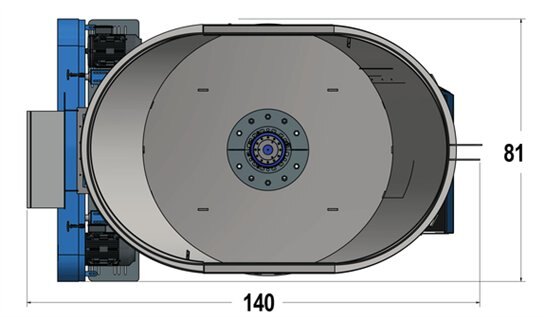

Total Width | 81.25 in | 206.38 cm |
Total Length | 140 in | 355.6 cm |

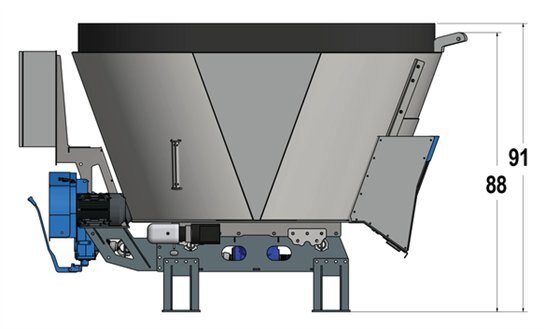

Total Height | 90.75 in | 230.51 cm |
Loading Height | 88 in | 223.52 cm |
Chute Height | 17 in | 43.18 cm |
Model Description | |
---|---|
Auger Thickness (Optional 3/4") | 1/2" |
Floor Thickness | 3/4" |
2-Speed Gearbox | Standard |
Max lbs of Feed in Mixer | 4,390 lbs |
Magnets | Optional |
Hydraulic Power Pack | Yes |
Drive Systems and Electrical Requirements | |
---|---|
Drive Style | Electrical Serice Required |
Belts, 2x10hp | 240V single phase, 100A |
