Item Details

ID: 17383383
Make: Yamaha
Type: New

Year: 2021
Model: TW

Width: 820mm (32.3'')

Engine: Air-cooled, SOHC, 2-valve, single

Height: 1,120mm (44.1'')

Length: 2,090mm (82.3'')

Wheelbase: 1,325mm (52.2'')

Final Drive: Chain

Transmission: 5-speed

Bore And Stroke: 67 x 55.7mm

Compression Ratio: 9.5:1

Ignition / Starting: TCI / Electric Start

Item Description

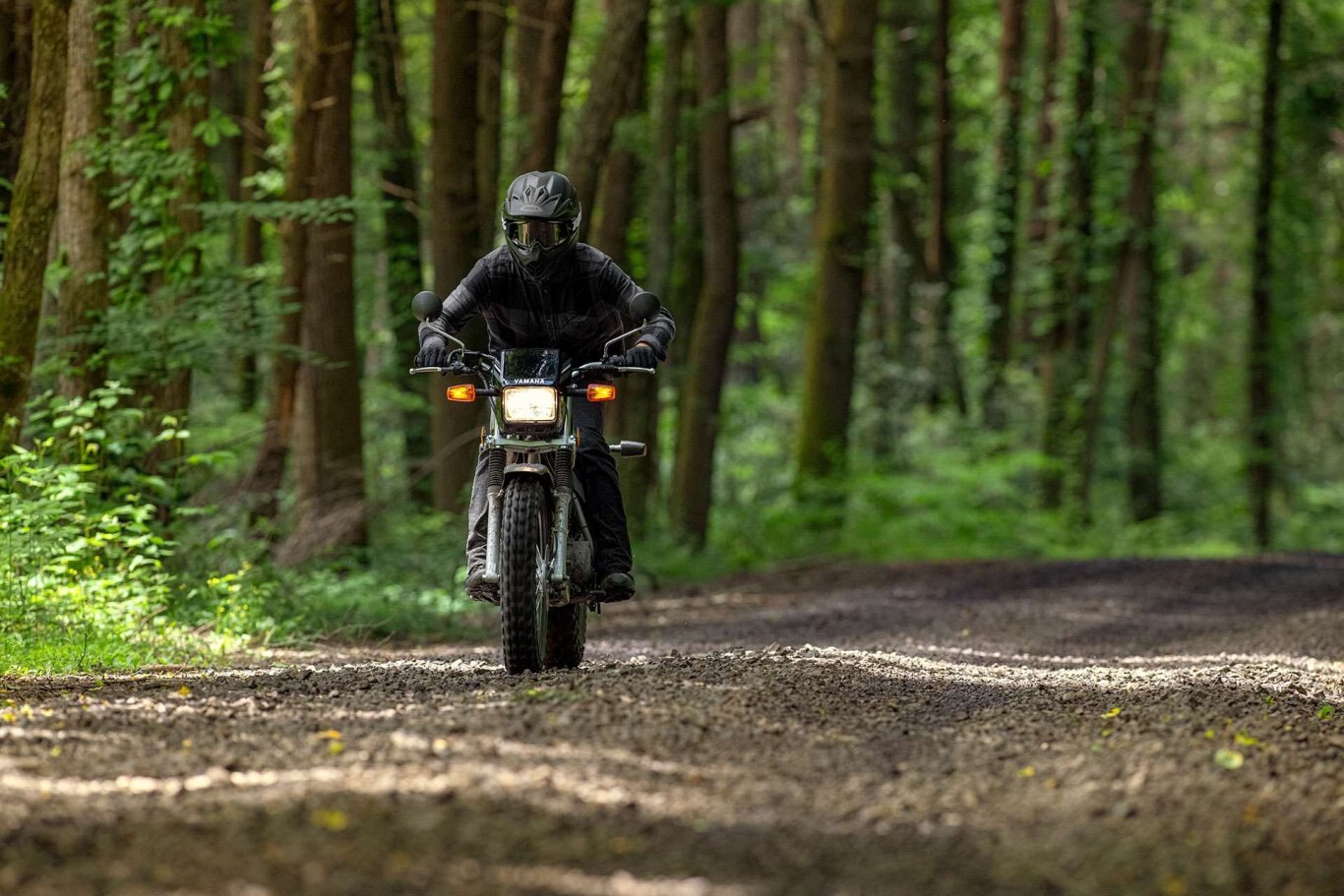

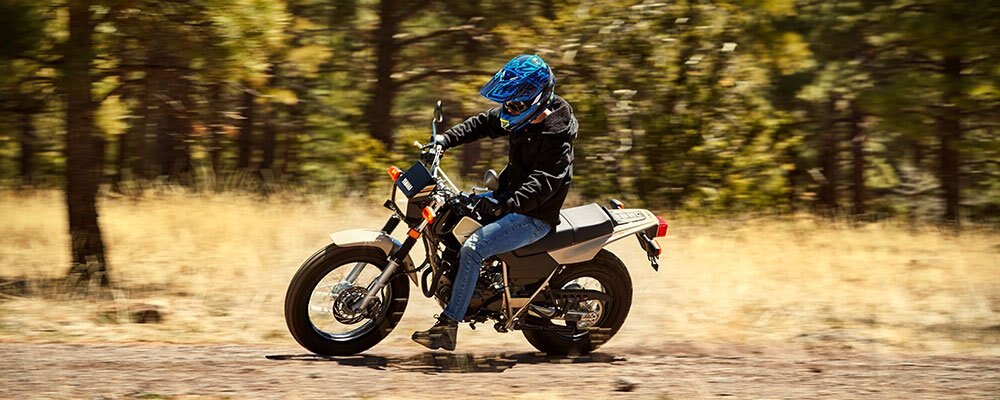

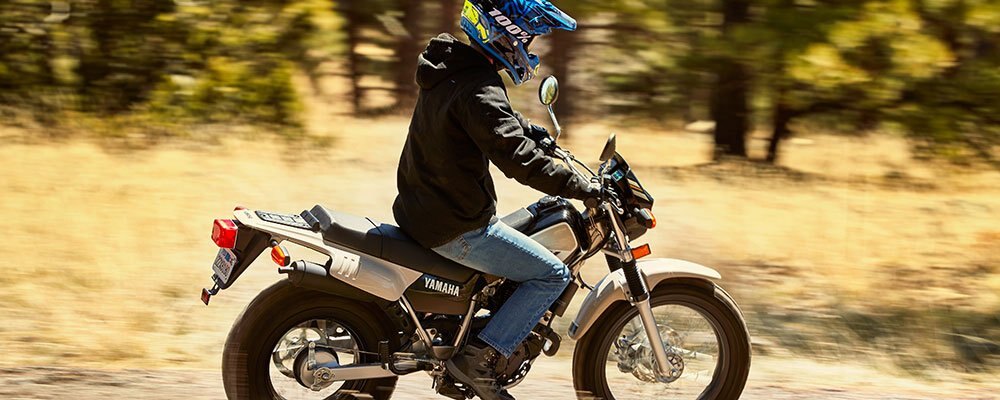

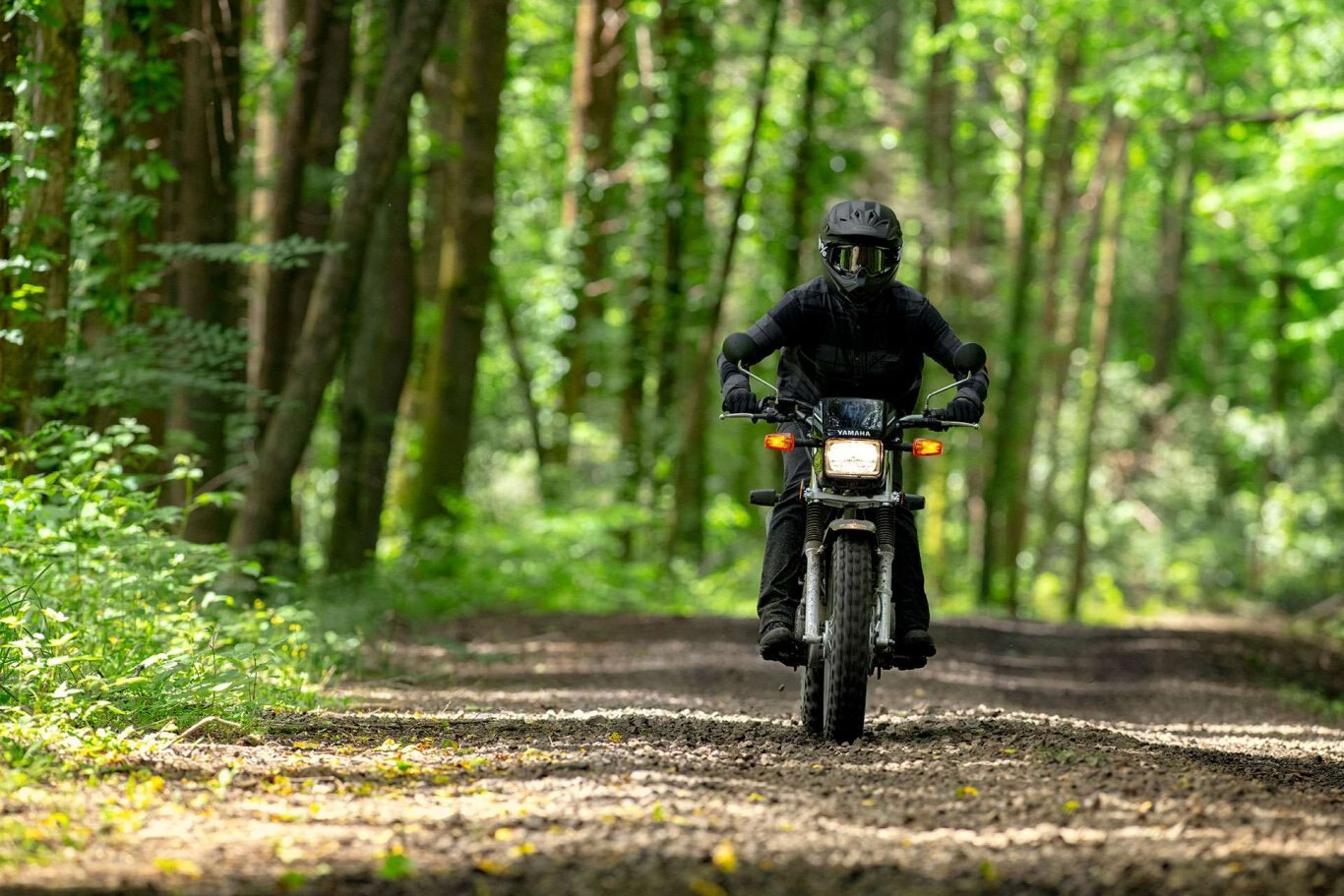

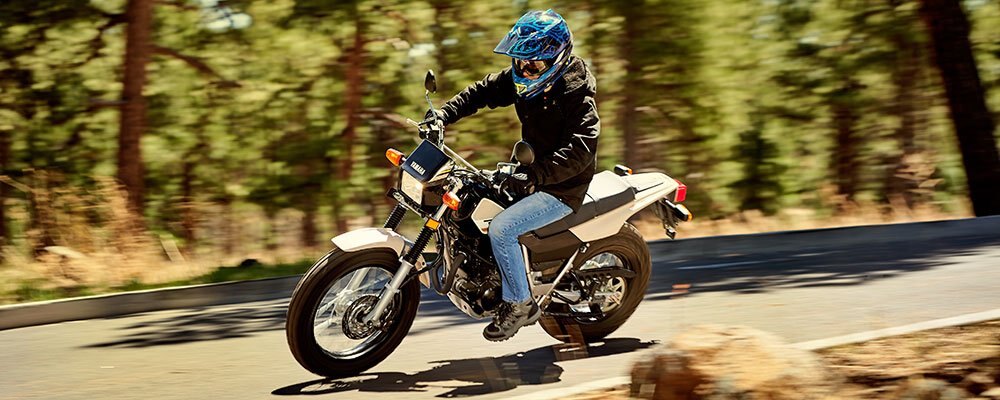

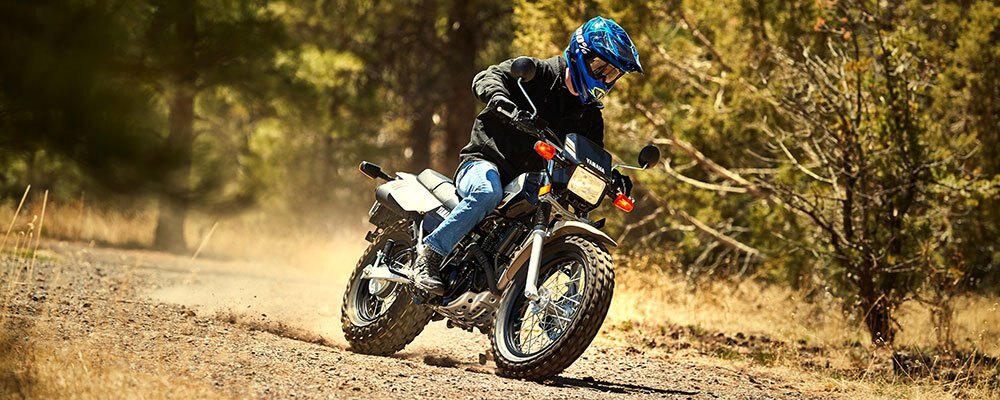

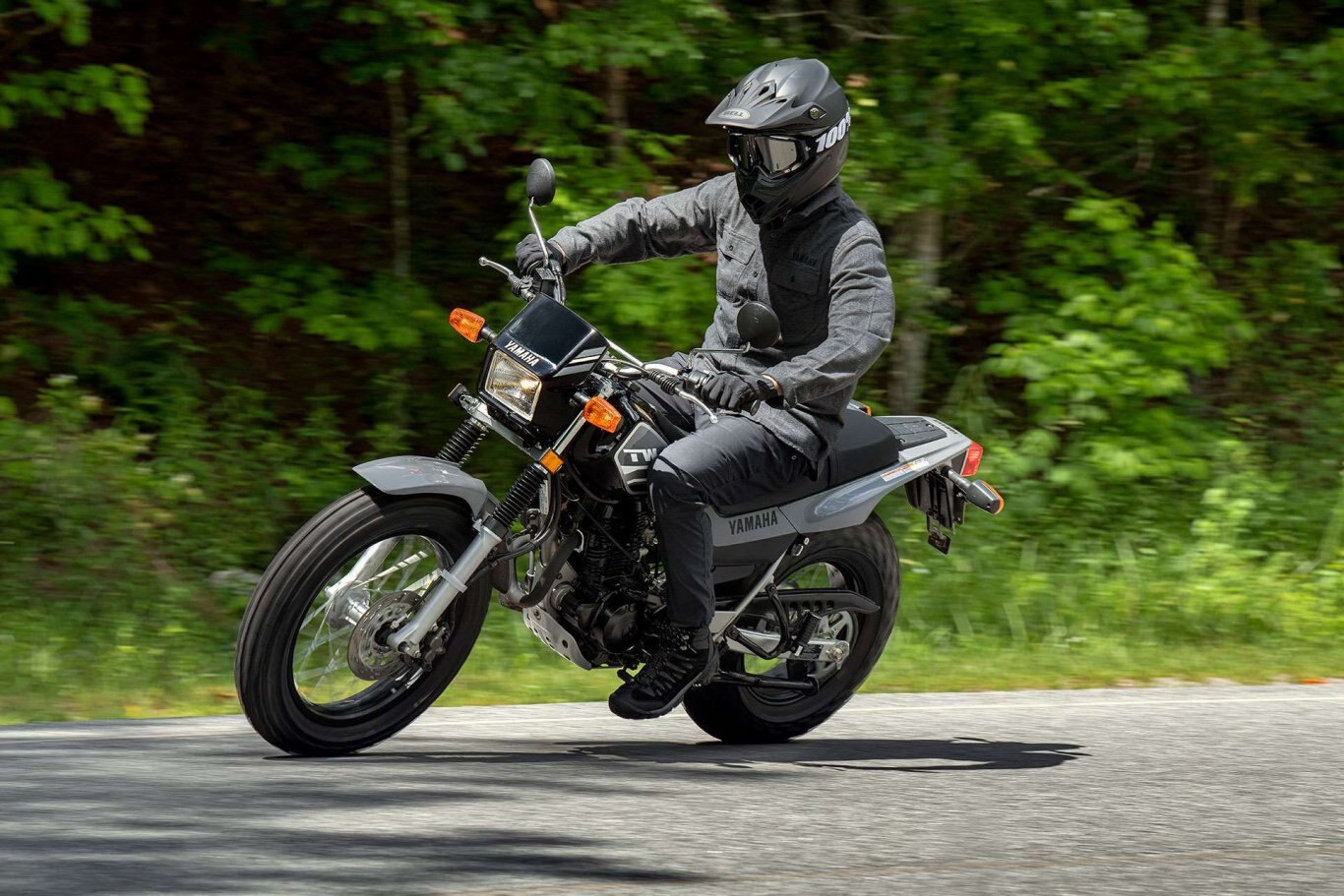

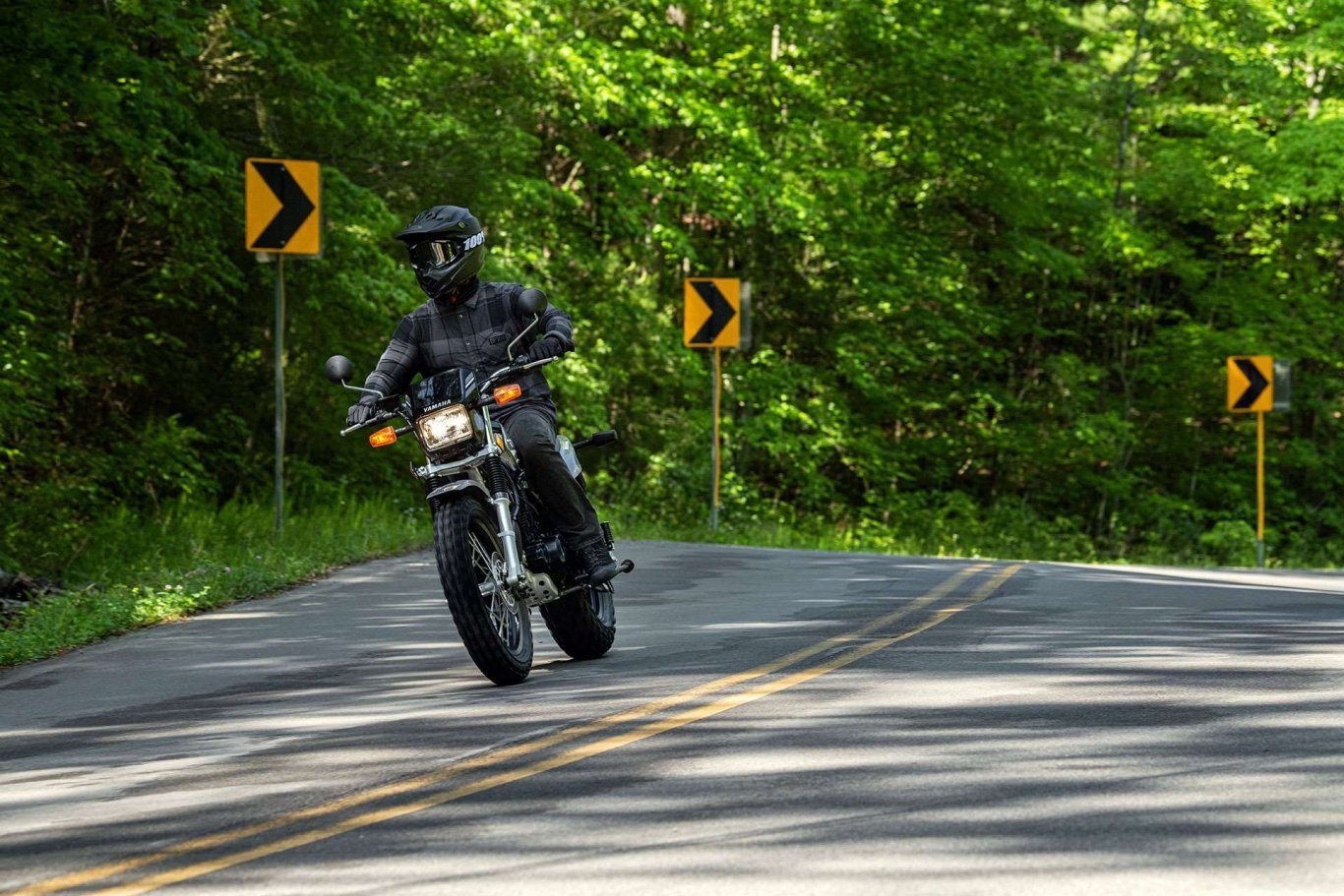

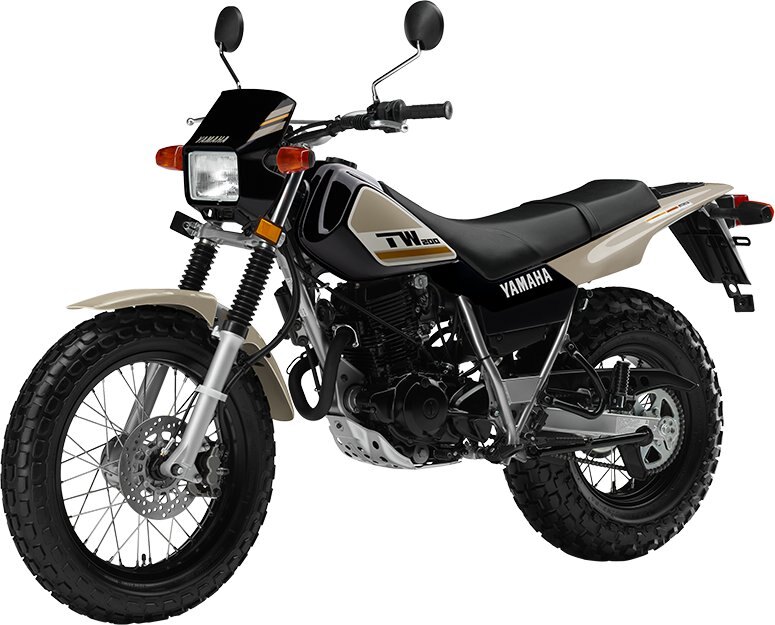

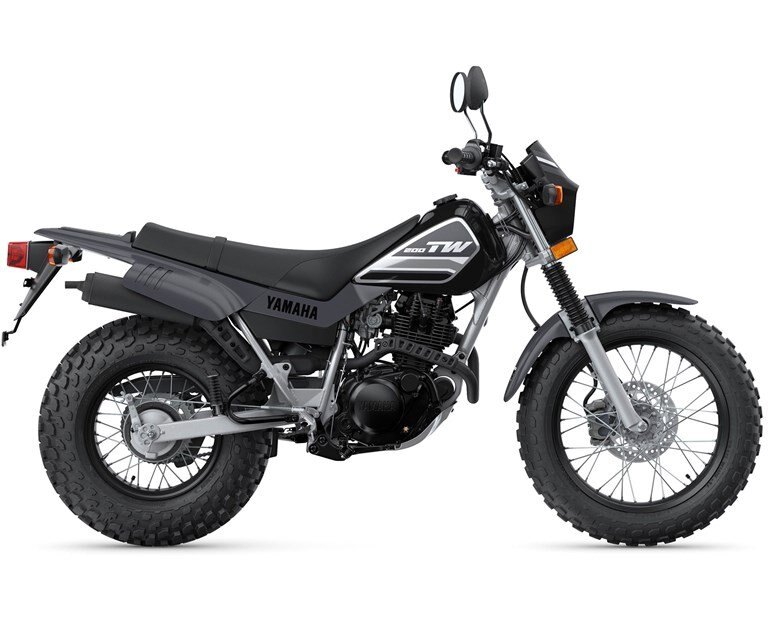

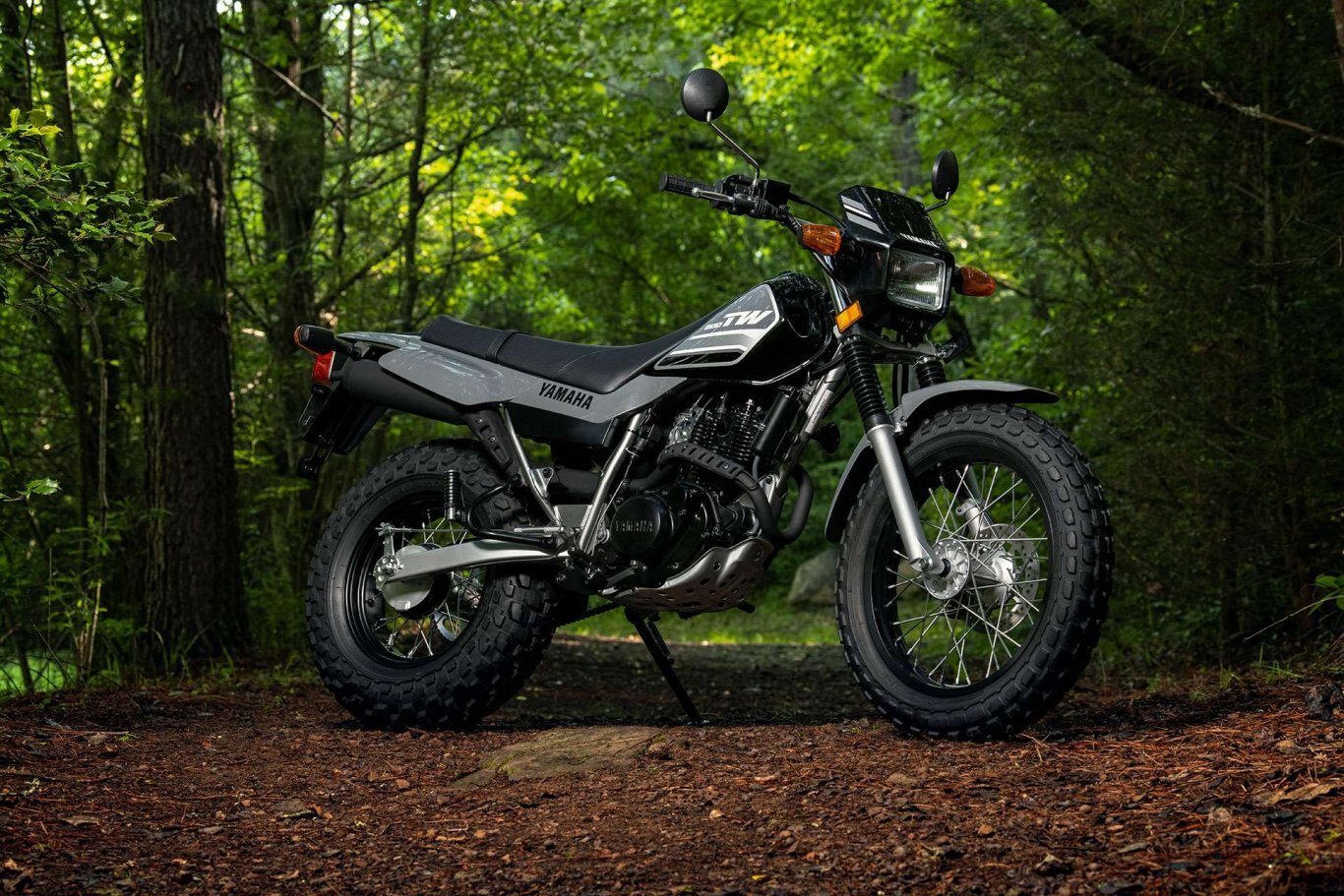

A low seat, extra-wide tires, and a proven four-stoke engine have cemented the TW200's reputation as a unique, fun-loving dual purpose ride. Whether you're a beginner or a veteran, a camper or a city dweller, this bike guarantees good times.

ENGINE
The TW's proven, 196 cc, air-cooled, four-stroke single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.

Comfort
An internal engine counterbalancer provides smooth performance while wide tires provide plenty of grip and a unique style. The long, wide seat design means lots of comfort whether exploring, commuting or just out having fun.

Key Features

?Electric starting.
Single overhead camshaft (SOHC), 2-valve cylinder head.
Automatic cam chain tensioner.
Aluminum cylinder features a cast iron liner.
Lightweight ball-bearing-mounted crankshaft.
Engine counterbalancer.

Engine

Super reliable, 196 cc, air-cooled, SOHC, 2-valve single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.
Electric starting.
- Fast, easy, no-hassle starting
Single overhead camshaft (SOHC), 2-valve cylinder head.
- basic design for easy, less expensive maintenance
- 34 mm intake and 28.5 mm exhaust valves
- utilizes easy to adjust conventional rocker arms and screw-type tappet adjusters
Automatic cam chain tensioner.
- reduces mechanical engine noise and maintenance
Aluminum cylinder features a cast iron liner.
- cylinder can be "bored out" in the event of a problem (2 sizes available)
Lightweight ball-bearing-mounted crankshaft.
- excellent durability
- fast engine response
Engine counterbalancer.
- reduces engine vibration to maximize rider comfort
28 mm Teikei carburetor
- carb-mounted choke knob
- provides crisp throttle response
- excellent fuel economy
Washable, foam air filter reduces maintenance costs.
Easy-access element-type oil filter and drain plug for fast oil changes.
Smooth-shifting 5-speed transmission with manual clutch.
- optimized gear ratios for both on- and off-road riding
- 5th gear is an overdrive gear to reduce engine rpm at highway speeds
Up-swept exhaust system
- exhaust note is quiet and environmentally friendly
- cleanable spark arrestor
- heat shields on header pipe and muffler protect rider and passenger from accidental contact
Maintenance-free capacitor discharge ignition (CDI).
- produces a strong spark for fast starts
- provides precise ignition timing/mapping for optimum engine performance at all rpm
Rugged, aluminum engine skid plate

Compact, diamond-type, high-tensile steel frame.
Rugged, steel box-section swingarm.
- grease fittings at the swingarm pivot points for easy maintenance and extended service life
- fitted with easy-to-use eccentric chain adjusters
33 mm front fork with 160 mm (6.3") of wheel travel
- soaks up the bumps for a comfortable ride
- rubber fork boots (gaiters) keep dirt and grit out of fork seals for extended life
Single-shock Monocross link rear suspension with 150 mm (5.9") of wheel travel.
220 mm front disc brake with twin piston caliper
- ensures serious stopping power
Rear drum brake
- solid stopping power
- easy-to-use, wing-nut-style adjuster

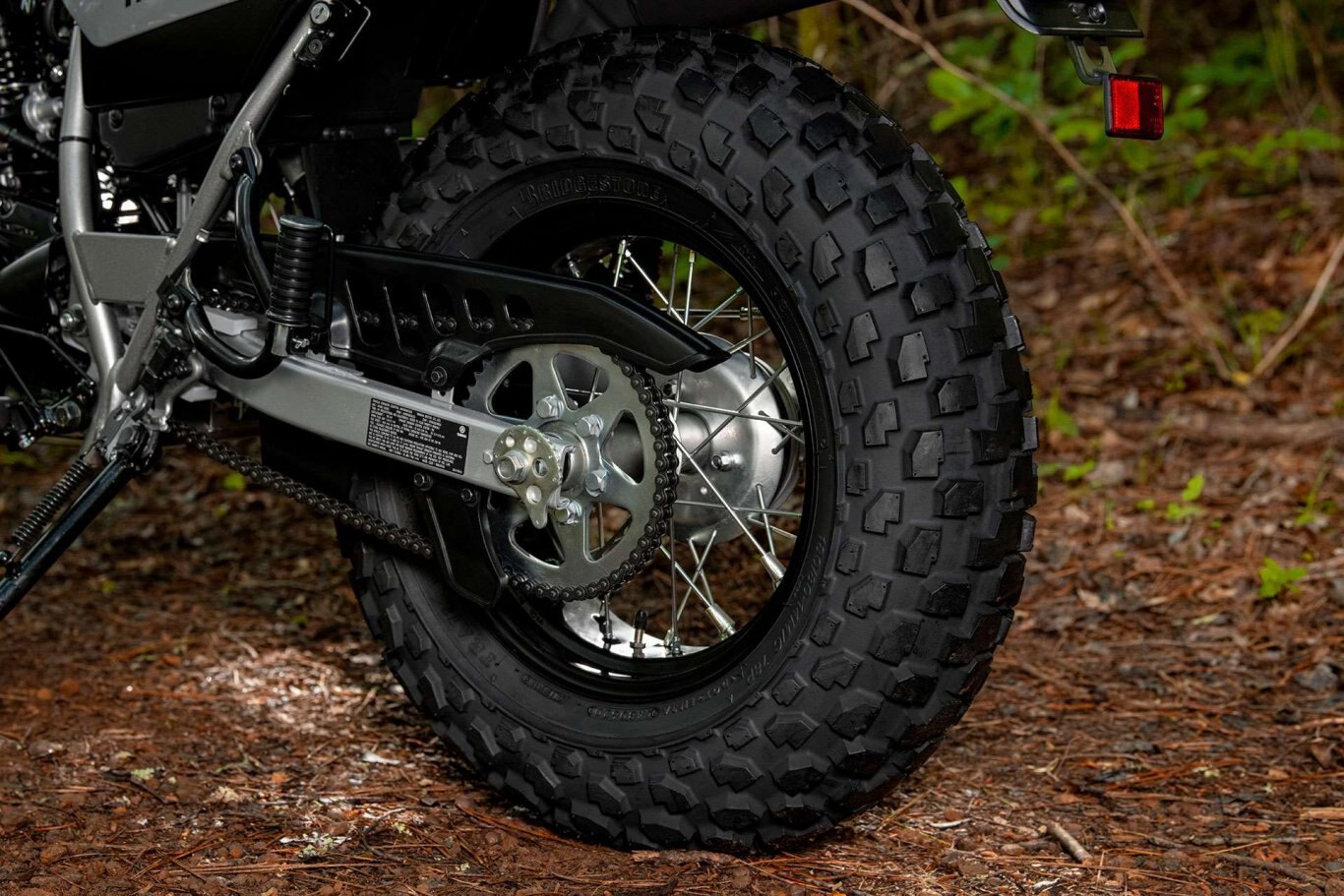

Wide, 130/80-18 front tire and unique 180/80-14 rear tire.
- deliver extra traction and great rider comfort over a wide range of terrain
- rear tire helps make TW200 the most distinct-looking dual purpose machine in the industry
Low, 790 mm (31.1") seat height
- allows most riders to put both feet firmly on the ground.

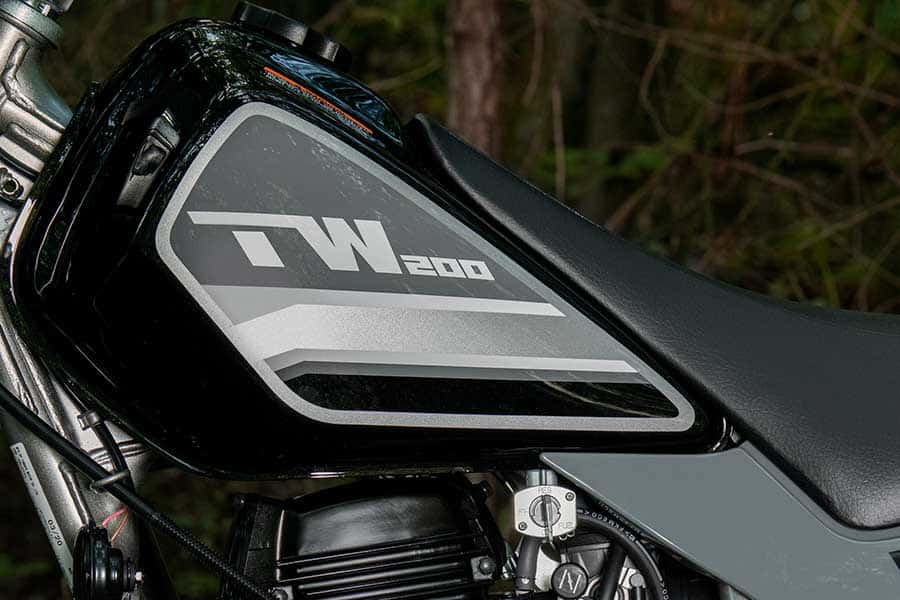

7-litre steel fuel tank
- on/off/reserve fuel petcock provides peace of mind
- 1.7-litre reserve
Lightweight aluminum alloy front and rear rims
- excellent durability
- reduces unsprung weight for optimal suspension performance
Powerful, 60/55-watt, halogen headlight
Mini, enduro-style fairing
- helps reduce wind buffeting at highway speeds
- adds a styling highlight too.

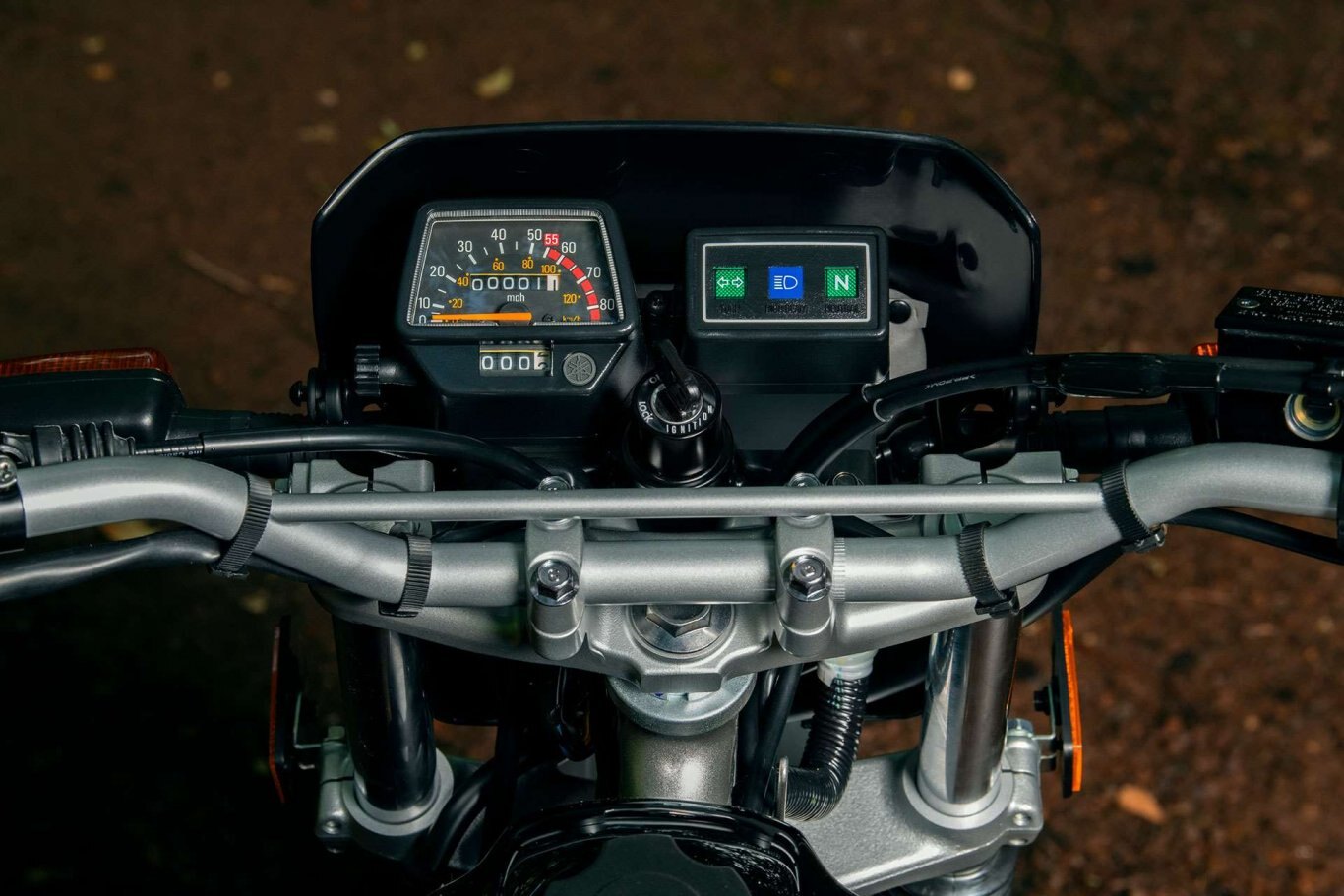

Compact meter / instrument assembly
- functions include: speedometer, odometer & resettable trip meter
- indicator lights for neutral, high beam & turn signals
- retro paint and graphics

Chassis

Details

Flexible turn signals resist damage
Oil level sight glass
Locking helmet holder
Locking steering and gas cap
Handy rear cargo platform
Bungee cord hook points (4), below the cargo platform
Serrated, folding, steel foot pegs
Passenger pegs and passenger grab strap
Rubber "boots" on brake and clutch levers help reduce mud & dirt damage/wear
