Log Splitters - Trailer - WX900 Series - Wallenstein
Contact for Price
Call (705) 728-1766
Item Details
ID: 17204745
Make: Wallenstein
Type: New
Make: Wallenstein
Type: New
Year: 2024
Model: WX900 Series
Model: WX900 Series
Item Description
| Built with regular use in mind, the sturdy and dependable WX 900 Series offers power and heavy duty construction. Upgraded towing features and log lift options make the WX 900 Series the right choice for contractors that need to travel from site to site. With up to 48” splitting length the WX 900 Series is also ideal for outdoor furnace applications. |
|
Features
|
|
HANDS FREE RETURN
- AUTO NEUTRAL
The splitting wedge automatically returns to the start position, ready for another piece. This allows you to clear the split pieces and prepare the next chunk for splitting.
 |
10" WEDGE HEIGHT
Split logs up to 10 inches in diameter in one shot, saving you time.
|
POWERED BY HONDA
270 cc GX 270 ENGINE
Trust the reliable power of Honda to muscle through hardwood with ease.
|
HYDRAULIC LOG LIFT
Manage heavy logs without injuring your back.
|
5.3" x 12" TIRES
Built for road travel, the WX900 series handles bumps and longer distances without premature wear and tear on the tires.
|
CYLINDER DIAMETER / STROKE
4.5" / 24"
The hydraulic cylinder splits through logs up to 24" long which is plenty of room for the common 16-inch wide Face Cord.
|
SAFETY CHAINS AND 2" BALL HITCH
Tow your WX Splitter safely and easily with the 2" ball hitch and safety chains. Standard on all 900 models.
|
2 STAGE HYDRAULIC PUMP 11 GPM
Maximize your efficiency with the 2-stage pump that moves quickly and splits powerfully. Stage 1 quickly moves the wedge from the start post ion to the point of contact where minimal pressure is required. As the splitting action begins, the flow decreases and the pressure increases to provide maximum splitting force.
|
AVERAGE CYCLE: 7 SECONDS
Average splitting cycle time is the average amount of time it takes for the splitting wedge to fully split a log, setup the next piece and begin splitting again.
The average splitting cycle time is based on straight grain logs. The average splitting cycle time will increase when processing stringy or cross-grain logs.
|

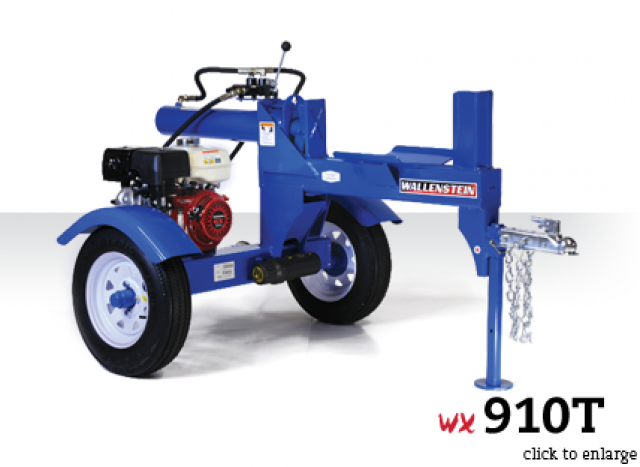

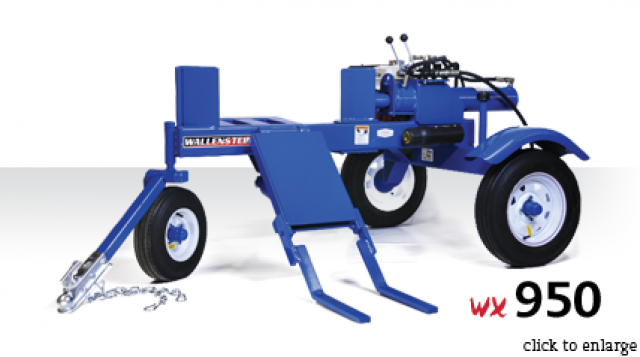

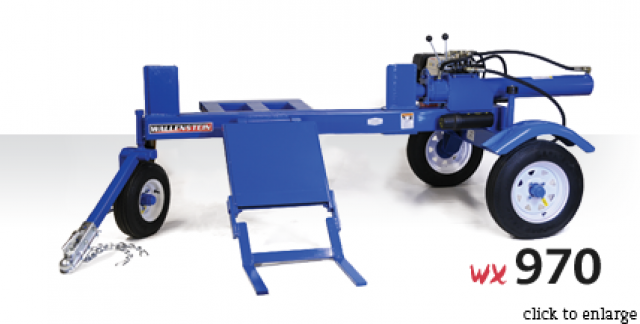

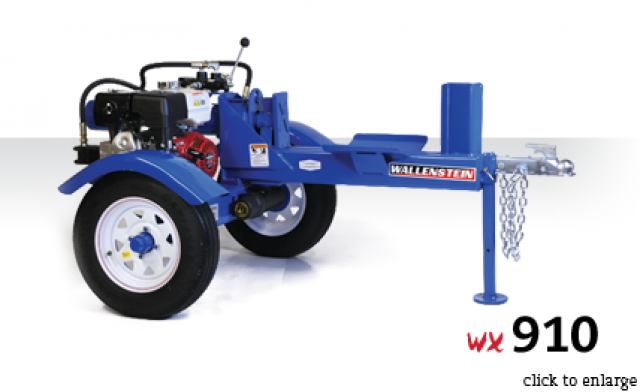

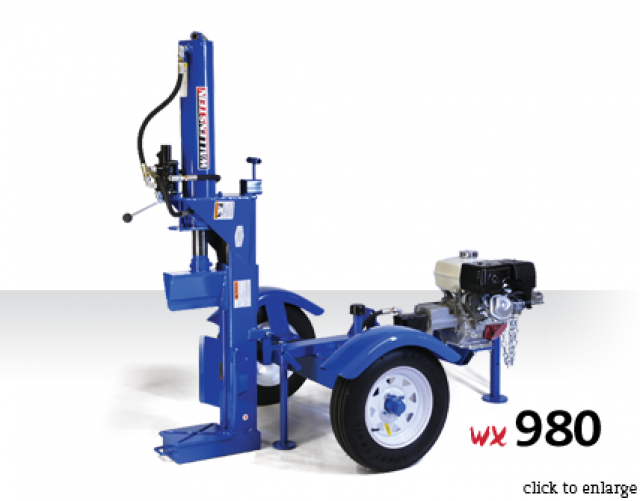

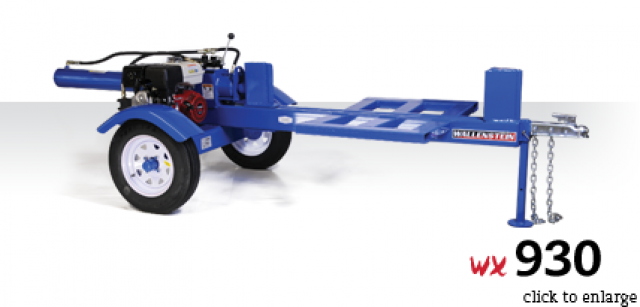

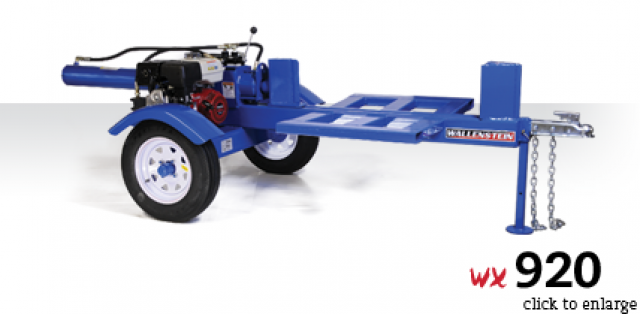

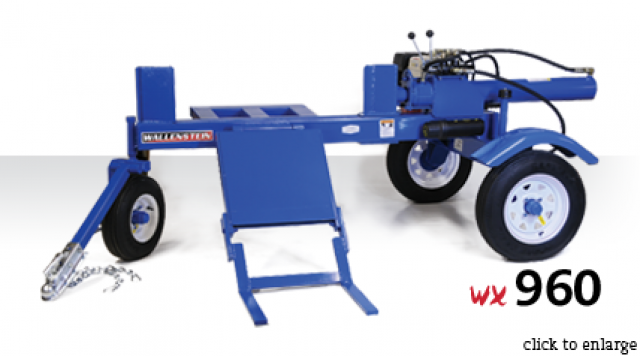

| Model | WX910 | WX910T | WX920 | WX930 | WX950 | WX960 | WX970 | WX980 |
| Engine Model | 270 cc Honda GX 270 | 270 cc Honda GX 270 | 270 cc Honda GX 270 | 270 cc Honda GX 270 | 270 cc Honda GX 270 | 270 cc Honda GX 270 | 270 cc Honda GX 270 | 270 cc Honda GX 270 |
| Avg. Stroke Cycle Time | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs |
| Full Stroke Cycle Time | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs |
| Cylinder Diameter/Stroke | 4.5"/24" | 4.5"/24" | 4.5"/36" | 4.5" / 48" | 4.5" / 24" | 4.5"/36" | 4.5"/48" | 5"/24" |
| Splitting Force | 25 ton | 25 ton | 25 ton | 25 ton | 25 ton | 25 ton | 25 ton | 31 ton |
| Bed Height | 21" | 28.5" | 21" | 21" | 25" | 25" | 25" | 26" |
| Tire Size | 5.30 x 12 | 5.30 x 12 | 5.30 x 12 | 5.30 x 12 | 5.30 x 12 | 5.30 x 12 | 5.30 x 12 | 5.30 x 12 |
| Ball Hitch Size | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" |
| Splitter Orientation | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Hor. & Ver. |
| Dimensions (L x W x H inches) | 78 x 50 x 35 | 78 x 50 x 42 | 97 x 63 x 35 | 121 x 63 x 35 | 81 x 63 x 38 | 107 x 63 x 38 | 130 x 63 x 38 | 80 x 50 x 42 |
| Shipping Weight (lbs.) | 510 | 525 | 720 | 865 | 785 | 990 | 1135 | 635 |
| Optional 4-Way Splitting Wedge | W4140 | W4140 | W4130 | W4130 | W4130 | W4130 | W4130 | W4130 |
