Item Details

ID: 14402713
Make: Wallenstein
Type: New

Year: 2019
Model: BXM32

Chipping Capacity:: 3'' (8 cm)

Chipper Type: : Disc

Shredding Capacity: : 1'' (3 cm)

Shredder Type: : Hammer Mill

Hp Range: : 12 - 35

Hp Requirements For Maximum Capacity: : 25 - 30

Chipper Hopper Opening: : 10'' x 13'' (29 cm x 32 cm)

Chipper Housing Opening: : 3'' x 6'' (8 cm x 15 cm)

Shredder Hopper Opening: : 28'' x 30'' (71 cm x 75 cm)

Shredder Housing Opening: : 10'' x 10'' (25 cm x 25 cm)

Rotor Diameter: : 18'' (45 cm)

Rotor Weight: : 70 lbs (32 kg)

Number Of Rotor Knives: : 2

Number Of Shredder Knives: : 27

Dimensions (lxwxh): : 54'' x 36'' x 60'' (137 cm x 91 cm x 152 cm)

Discharge Hood Rotation: : 360°

Discharge Hood Height: : 58'' (147 cm)

Total Weight: : 445 lbs (202 kg)

Drive System: : PTO Belt Drive

Pto Rpm: : 540

Rotor Rpm: : 1600

Pto Height: : 11'' (27 cm)

Mounting System: : Cat I, iMatch™ & Quick Hitch Compatible

Feed System: : Gravity / Self Feed

Item Description

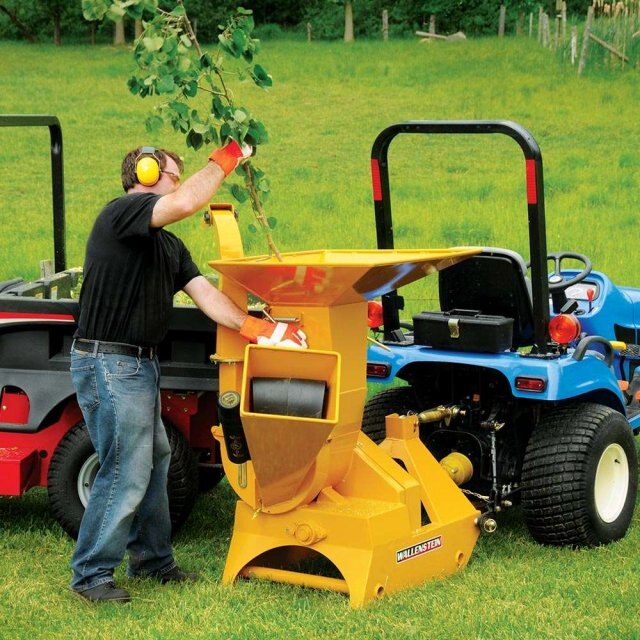

Directly connected to your tractor’s PTO, power is transferred straight into chipping / shredding action - quickly turning limbs, branches or debris up to 3” in diameter into valuable chips or mulch.

Features

Oversized Chipping Rotor

Reversible Chipping Blades

Adjustable Exit Chute

Self-feeding Chipper Hopper

iMatch Quick Hitch Compatible

PTO Drivetrain, Shearbolt protected

Pick Your Colour

Integrated Shredder Hopper

Exclusive Chop-Block
