Item Details
ID: 13871701
Make: HLA Snow
Type: New
Year: 2018
Model: 1000 Series
Item Description
|
Features
|
-
Lateral Float
-
Mouldboard Profile
-
Replaceable, Reversible Cutting Edge
-
Adjustable Skid Shoes
-

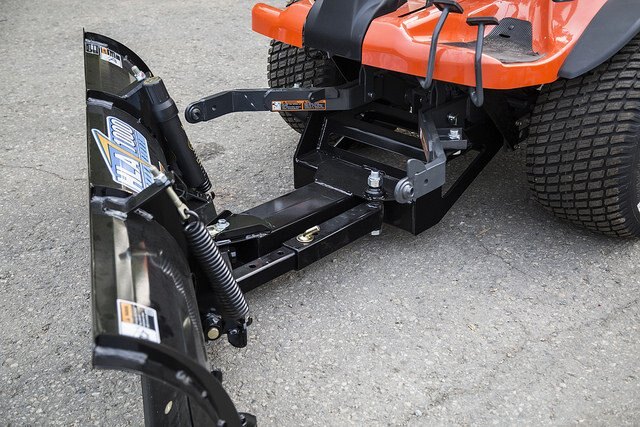

Spring Trip Mould Board
|
Specifications
|
|
Part # |
Approx. Weight (LBS.) |
Length (in.) |
Overall Road Width (Angled) (in.) |
Snow Clearing Width (Angled) (in.) |
Mouldboard Height |
Max Operating Weight (LBS.) |
SB100042 |
350 |
42 |
39.5 |
35 |
20" |
3,000 |
SB100048 |
365 |
48 |
44.5 |
40 |
20" |
3,000 |
SB100054 |
375 |
54 |
50 |
45 |
20" |
3,000 |
SB100060 |
385 |
60 |
56 |
50 |
20" |
3,000 |
SB100066 |
400 |
66 |
59.5 |
55 |
20" |
3,000 |
SB100072 |
410 |
72 |
65.5 |
60 |
20" |
3,000 |
SB100078 |
420 |
78 |
69.5 |
65 |
20" |
3,000 |
SB100084 |
440 |
84 |
74.5 |
70 |
20" |
3,000 |
SB100090 |
450 |
90 |
79.5 |
75 |
20" |
3,000 |
SB100096 |
465 |
96 |
|
|
20" |
3,000 |
|
|
