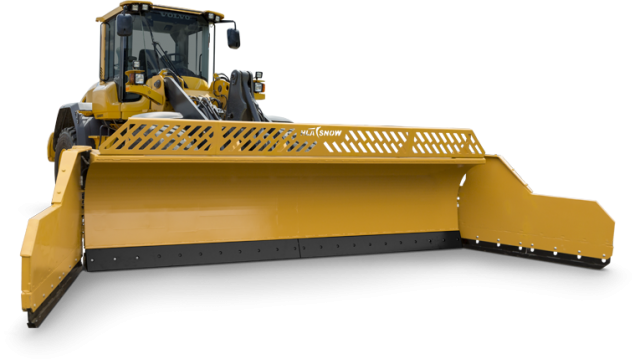

Item Details
ID: 13667097
Make: HLA Snow
Type: New
Year: 2016
Model: 5206W Series
Item Description
|
|
|
Features
|
-
2 Year Warranty
-

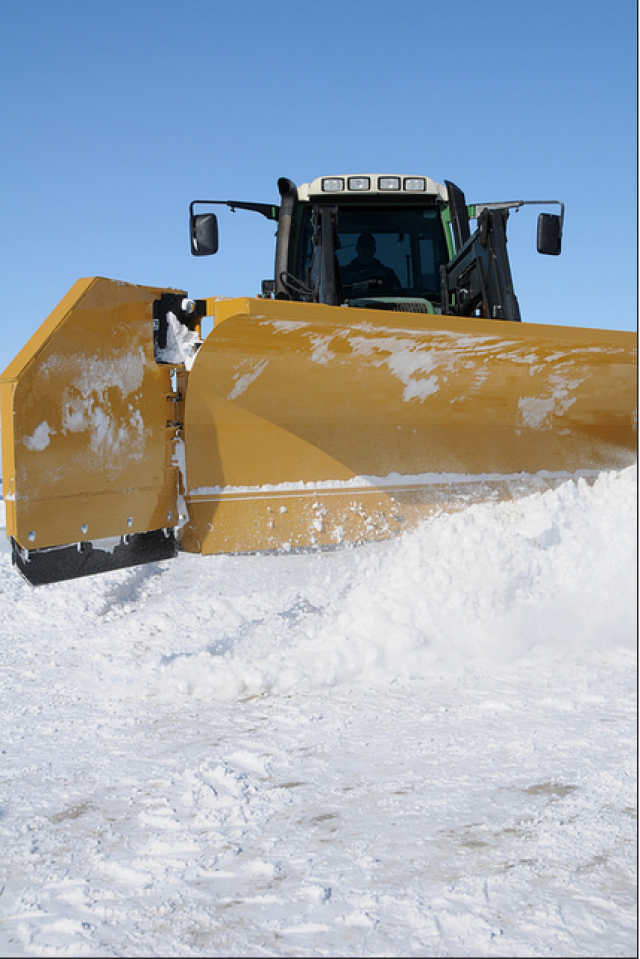

6' Wings
-
Removeable Upper Wing Tip
-
180° Rotation
-
Crossover Relief Valve
-
Floating End Plate Edge
-
Lateral Float
-
Nitrate Rods on Angle Cylinders
-
Replaceable, Reversible Cutting Edge
-
Rotary Actuators - PATENTED
-
Skid Shoes
-
Spring Trip Cutting Edge
-
Tire Protection System - PATENTED
|
|
Options
|
-
Rubber Cutting Edge
-
Spill Guard
-
Boron or Carbide Cutting Edges
-
Curb Runner
-
High Tensile Long Wear Skid Shoes
-
Floating Blade Hinge
|
|
Part # |
Clearing Width Closed (in.) |
Clearing Width Open (in.) |
Overall Road Width (Angled) (in.) |
Snow Clearing Width (Angled) (in.) |
Mouldboard Height (in.) |
Weight (lbs.) |
Max Operating Weight (lbs.) |
|
SB5206W921 |
108 |
252 |
103 |
205 |
42 |
4,135 |
40,000 |
|
SB5206W1022 |
120 |
264 |
113 |
215 |
42 |
4,260 |
40,000 |
|
SB5206W1224 |
144 |
288 |
133 |
235 |
42 |
4,530 |
40,000 |
|
SB5206W1426 |
168 |
312 |
153 |
255 |
42 |
4,805 |
40,000 |
|
SB5206W1628 |
192 |
336 |
173 |
275 |
42 |
5,125 |
40,000 |
|
