Item Details

ID: 13651951

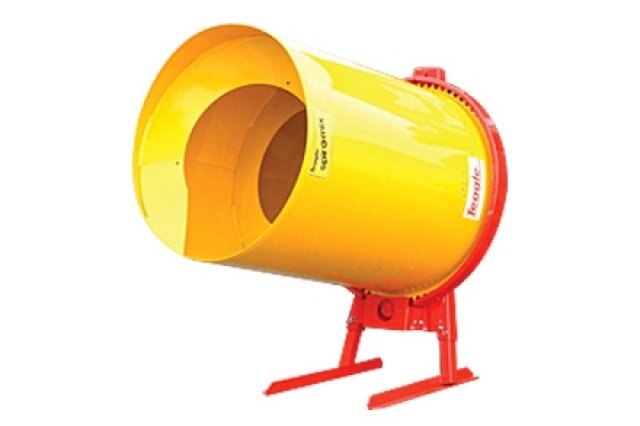

Make: Teagle
Type: New

Year: 2017
Model: 100H

Minimum Tractor Size : 15kW / 20HP

Linkage: Cat 1/2

Drum Volume : 280 litres (10 cu.ft.)

Approx Mix Volume : 140 litres (5 cu.ft.)

Loading Height To Drum Lip : 37 cm (15 in)

Weight Empty : 118 kg (262 lb)

Approx Laden Weight : 430 kg (950 lb)

Drum Diameter : 65 cm (25 in)

Height Overall With Machine On Ground : 89 cm (35 in)

Item Description

Easy Loading through the wide mouth of the drum.

Easy Unloading - the drum rotates in one direction for mixing and in the opposite direction for unloading. Hydraulic motor drive - easily controlled from the tractor seat via the external services spool valve.

Good Mix - the deep spirals, needed to give a good unloading action, also give a quick and thorough mix.

Good Unloading Height - because the drum does not tip to unload, the discharge height is always good.
