Item Details

ID: 13649696
Make: Case IH
Type: New

Year: 2017
Model: Compact Farmall® 35C

Horsepower, Maximum - Hp (kw): Same as advertised

Power Boost - Hp (kw): No boost

Engine Make: IHI Shibaura

Engine Model: N843T-F-27

Number Of Cylinders: 3

Fuel Tank Capacity - Gal (l): 10.5 (40) ROPS; 12.4 (47) Cab

Pto Speeds, Rpm: 540

Engine Bore, In (mm): 3.307 (84)

Engine Stroke, In (mm): 3.543 (90)

Front Tire Size, 2wd: No 2WD

Rated Engine Speed, Rpm: 2600

Advertised Engine Power, Rated, Hp (kw): 36.2 (27)

Item Description

Compact Farmall® C Series

The compact Farmall C series are deluxe compact tractors, providing an exceptional operating experience in a compact package.

Key Features of the Compact Farmall C Series Tractor

Model Year 2016 Enhancement: The 35C, 40C and 50C now come with the option of a cab or ROPs configuration. The new cab option gives producers more comfort in all weather conditions. Key Features of the Compact Farmall C Series Tractor

Other features include

Larger operator's platform offers easier access and exit
Deluxe seat features adjustable backrest, armrests and mounts on an inclined plane for taller operators
Excellent all-around visibility from the operator's seat
Improved rear visibility to drawbar, PTO and 3-point hitch
Larger 17.5L-24 R4 industrial tire offering on Class 3 models
Improved control layout and placement
Easy routine maintenance
Loaders and implements for various applications

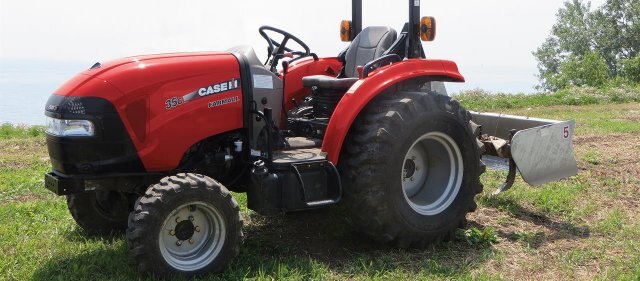

Compact Farmall® 35C

The compact Farmall 35C offers versatility in a well designed package.

Ready for Work

The compact Farmall 35C tractor packs a lot into a small package. All models ship from the factory with a Mid-Mount Valve and Loader Joystick and are loader-ready. The Independent PTO operates regardless of transmission gear or if the tractor is stationary or mobile. The 3-point hitch has a 1345 lb (610 kg) lift capacity.

Efficient Engine

The compact Farmall 35C is powered by a three-cylinder turbocharged engine with an electronic high pressure common rail fuel system. This system allows for faster throttle response, more power with greater torque yet runs quieter with less vibration. This advanced engine meets the Tier 4 B/Final emissions requirements.Quick and easy maintenance checkpoints allow you to the job at hand faster.

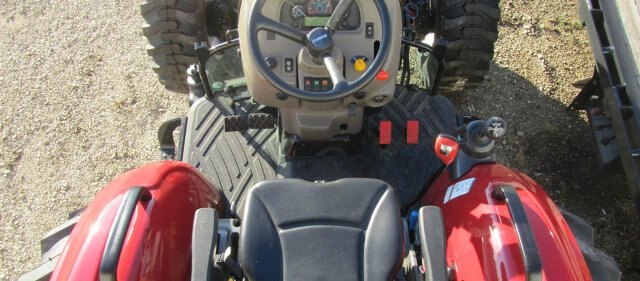

Operator Comfort

The operator area has redesigned controls for ease of use. The instrument cluster is similar to an automobile's so it's easy to understand. The deck is wider with more foot room. The seat is adjustable for height, tilt and fore/back distance. The sloped hood provides superior visibility.
