Item Details

ID: 13371245
Make: Argo
Type: New

Year: 2015
Model: 8×8 750 HDi

Engine: 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty

Model: Kohler Aegis LH775

Horsepower: 30 (22 kW)

Displacement: 748cc

Brakes: Hydraulic

Load Capacity On Land: 1150 lb. / 521 kg total

Towing Capacity: 1800 lb. / 816 kg

Fuel Capacity: 7.1 Us gallons (27 litres) See-through polyethylene fuel tank. 8 hours of operation.

Speed On Land: 20 mph / 32 km per hour

Shipping Weight: 1260 lb. / 572 kg

Ground Preassure: 2.1 psi (14.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks

Ground Clearance Tires: 9.5'' (240 mm)

Ground Clearance Tracks: 10.5'' (265 mm)

Operating Conditions: All weather, all terrain, -40C to +40C

Cooling Air: Liquid Cooled

Starting: Electric

Transmission: ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.

Load Capacity On Water: 1000 lb. / 454 kg total

Speed On Water: 3 mph / 5 km per hour

Tires: ARGO AT189 25x12.00-9 NHS

Item Description

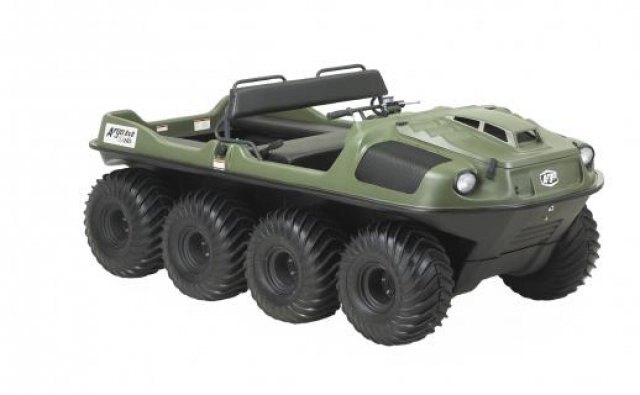

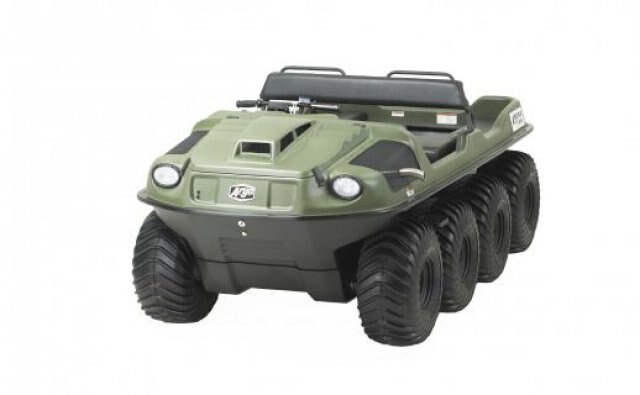

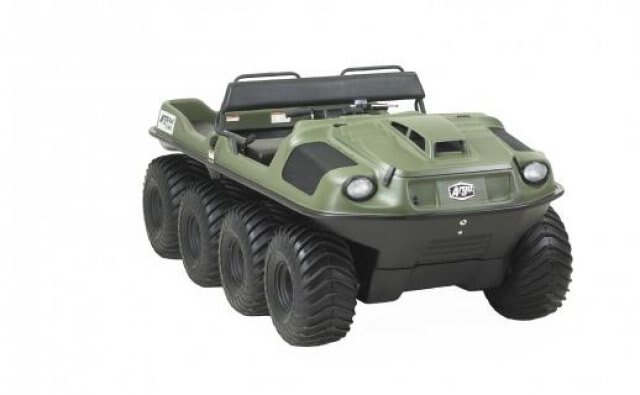

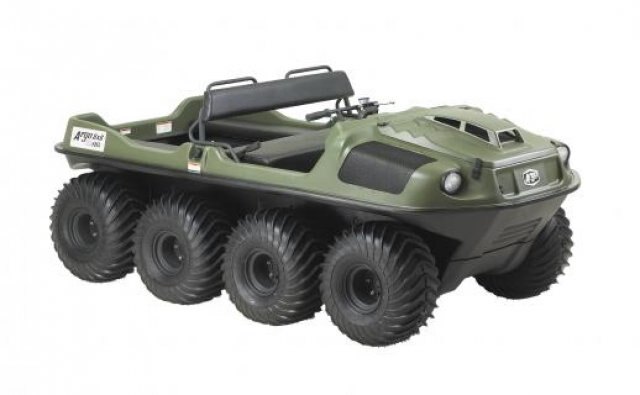

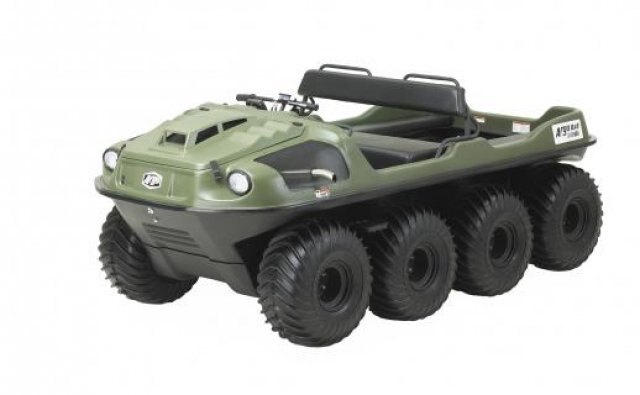

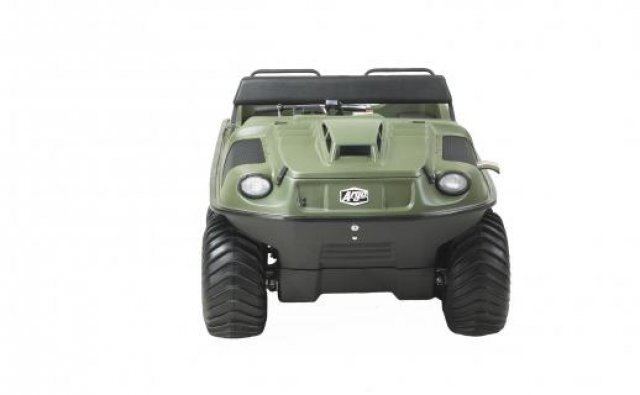

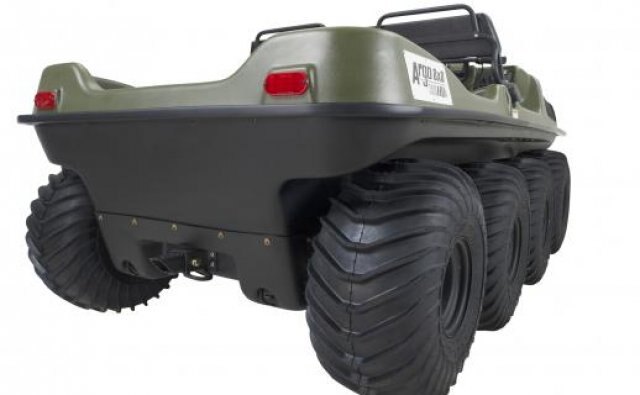

8x8 750 HDi

This 8-wheel drive amphibious off-road vehicle is powered by a 4-stroke OHV V-Twin liquid cooled 748cc, 30 hp (22 kW) Kohler Aegis LH 775 engine with electronic fuel injection. It has a load capacity of up to 1150 lb. / 521 kg on land or 1000 lb. / 454 kg on water, can transport 6 passengers on land, 4 on water and features towing capacity of 1800 lb. / 816 kg.

8x8 750 HDi Overview

The ultimate machine for those who don’t like compromise solutions! This ARGO has it all – the powerful yet quiet liquid cooled, fuel injected engine, the efficient ADMIRAL steering transmission and the large 25” (635 mm) wheels combine to give this machine great top speed handling and best in class extreme terrain capability while carrying its full payload. It is equally well suited for hard work as for hard play. Rubber tracks are available for better traction in soft terrain or snow.

Colors

Features

8x8 750 HDi Features

Innovative triple-differential ADMIRAL transmission with independent steering brakes
Optional high torque transmission for extreme terrain performance
Increased steering efficiency for more and constant power to the wheels
Electronic Fuel Injection provides:
1. Increased fuel efficiency
2. Reliable cold weather starting
3. Improved high altitude performance
4. On-board diagnostics
Large rear cargo capacity
Long wheel base for increased ride comfort over rough terrain
Large triple-sealed outer axle bearings
Front and rear bearing extensions

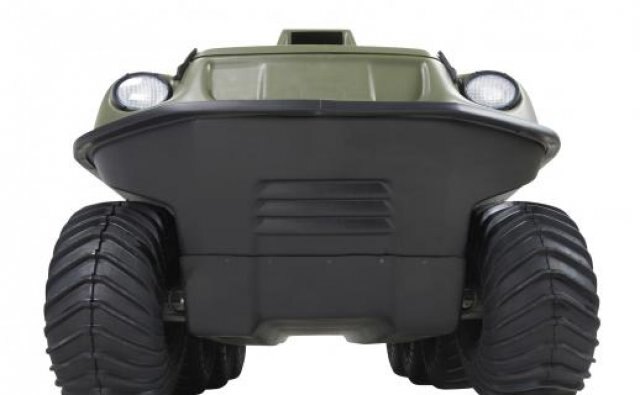

Full skid plate for lower body protection
8-wheel traction with low centre of gravity for extra stability
25" (635 mm) ARGO tires with proprietary tread design
Electronic ignition

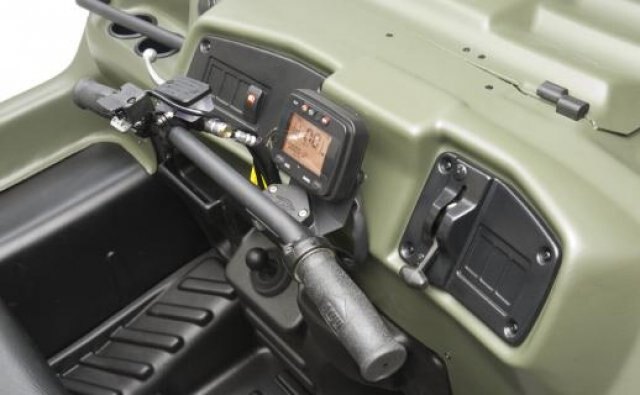

Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, hour meter, engine coolant temperature, low oil pressure, parking brake reminder lights and check engine light)
Self-adjusting hydraulic brakes with vented discs
Low emissions
Three-year limited engine warranty
