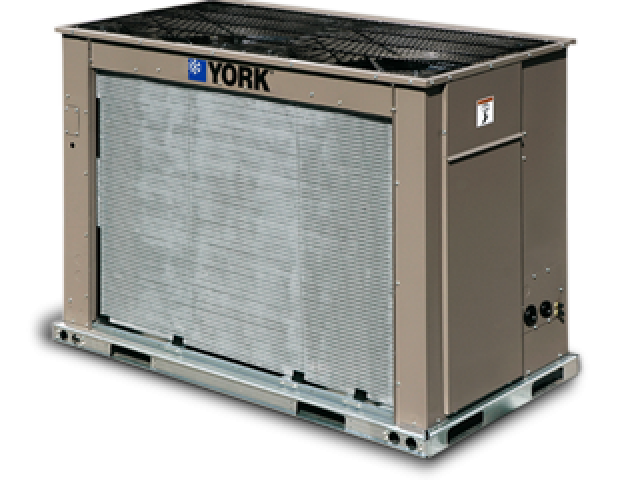

York YC-YD Predator R-410A Split System Condenser
Contact for Price
listing image
  • listing image
Call (705) 887-5559

Item Details

ID: 13239593
Make: York
Type: New
Year: 2014
Model: YC-YD Predator R-410A Split System Condenser
Capacity: 7.5 - 25 Tons
Efficiency: 11.0 - 11.9 EER

Item Description

York® light commercial split system air conditioners and heat pumps include high capacity Predator™ Series rooftop units offering up to 300 MBH capacity and 11.4 EER, plus higher capacity Millennium™ rooftop units up to 600 MBH and an outstanding 12.5 EER.
Three Row  Spike Drag Harrow

Three Row  Spike Drag Harrow


Certifications

  Features

  • Meets EPACT 2005 and exceeds ASHRAE 90.1-1999 efficiency standards.
  • Simplicity® controls.
  • Inherently protected condenser fan motors.
  • 2-pipe and 4-pipe configurations available.
  • Five-minute anti-short cycle timer and minimum compressor run time.
  • Standard operation to 40°F. Factory or field-installed low-ambient VFD control to 0°F.
  • Factory-installed disconnects, convenience outlet and technicoated coil option.
  • Scroll compressors provide both high efficiency and reliability.
  • Condenser coils constructed of MicroChannel aluminum tube, aluminum fins for durability and long lasting and efficient operation.
  • Crankcase heaters that will be de-energized when the compressor is operating.
  • Self-contained high and low pressure controls.
  • Solid state or internal line break compressor motor protection.
  • Class 2, 24-volt thermostat control circuit.
  • A filter drier is shipped in the unit’s control box for field installation in the liquid line. Copper stub-outs are factory-mounted on the suction and liquid lines to simplify the field piping connections.
  • Compressor staging for capacity reduction provides more economical operation and even temperature levels within the conditioned space (except 7.5 ton).
